Box PC IPC-DITX-EP
- Robust Industrial Box PC
- Compact design
- Fanless
- M-ITX-Motherboard
Request now Download Datasheet
The IPC-DITX-EP is a powerful industrial box PC designed for mechanical engineering and industrial automation. Equipped with Intel® Core™ i7 processor, SSD storage and Windows 11 IoT, the system is ideal for machine control, edge computing and test bench applications.
Flexible hardware configurations, a free PCI Express expansion slot and numerous interfaces allow easy customization for individual requirements. The rugged industrial housing ensures reliable continuous operation even in demanding environments.
Designed and manufactured in Germany.
Highlights
- Powerful industrial box P
- Intel® Core™ i7 processor
- Fast SSD storage
- Flexible hardware configuration
- Free PCI Express expansion slot
- Wide range of interfaces
- Supports Windows 11 IoT
- Rugged industrial housing
- Ideal for machine control and edge computing
- Designed and manufactured in Germany
Technical data
- compact IPC for wall mounting
- steel chassis
- M-ITX-Motherboard,
free slots: 1x PCI
Usability depending on technical equipment, please ask our consultants - interfaces:
ethernet 10/100/1000 Mbps, 2x USB, RS-232 and RS-232/422/485 depending of used board, PS/2 for mouse and keyboard, external DVI-I port - individual technical equipment by request
- working temperature: 0 up to +50° C
- storage temperature: -20 up to +60° C
- relative humidity: 10 to 80%, not condensing
Storage / Transportation 10 to 90%, not condensing - power supply: 24 VDC or 230 VAC
- weight: 4,3 kg
Order info
| IPC-DITX-EP | IPC for wall mounting, Board Mini-ITX up to Core i7 |
|---|---|
| Options | CPU upgrades from Intel Atom to current Core technology |
| Customized | For other configurations please ask our system consultants |
| Operating systems | Windows 10 IoT LTSC 2021 Windows 11 IoT LTSC 2024 others on request |

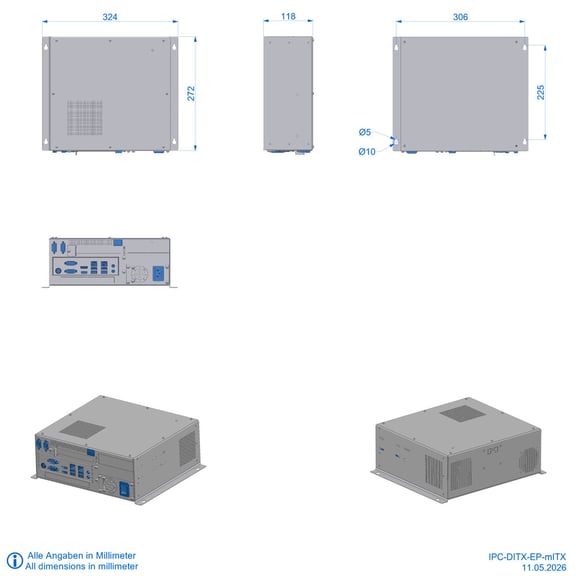

Technical drawing
