Replacement Kit Gira Client 19

  • replace outdated systems with new ones without mess or chiseling
  • quick and safe mounting
  • front design available in various materials and colors

tci technical icons 60x6019Zoll Displaytci technical icons 60x60Touchtci technical icons 60x60Fanlesstci technical icons 60x60Soundtci technical icons 60x60Win11

Request now Download Datasheet

This touch panel allows you to replace outdated systems with new ones without any mess or chiseling by using the existing flush-mounted boxes.

Thanks to a modern panel PC, new control units can be installed quickly and easily in an existing flush-mounted box. This ensures a smooth transition without any significant disruption to operations.

  • Special front panel with multi-touch glass, identical mounting points as the Gira panel
  • Additional panels made of acrylic/anodized aluminum with a brushed finish or glass with a smooth surface
  • The industrial power supply is prepared for installation in the Gira installation housing
  • Equipped with a quad-core industrial board as standard, optionally also available with the latest Core i technology or as a touch monitor.

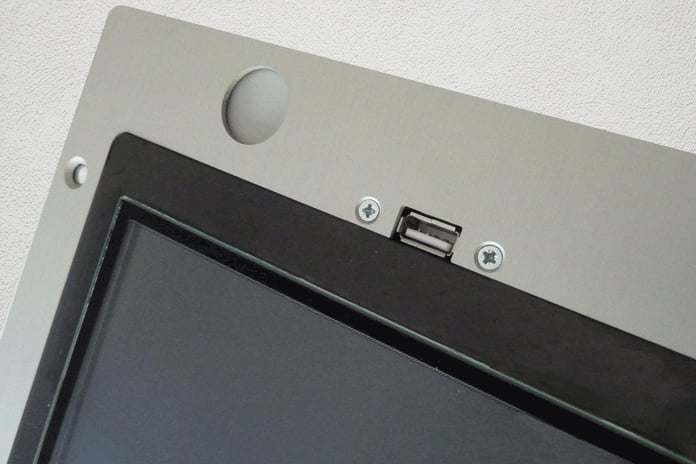

USB
Easy to install thanks to the magnet

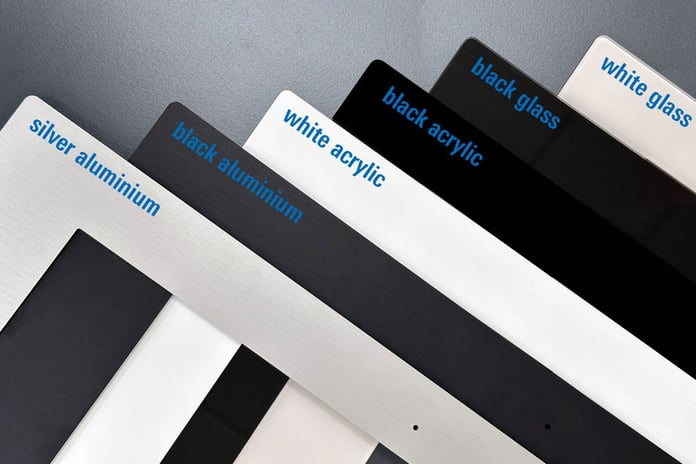

From left to right: silver aluminium, black aluminium, white acrylic, black acrylic, black glass, white glass
From left to right: silver aluminium, black aluminium, white acrylic, black acrylic, black glass, white glass

Your benefits at a glance:

  • easy integration into existing flush-mounted boxes, no need to remove the old boxes
  • quick and safe mounting
  • support for applications/apps on Windows

The replacement kit components:

  • touch panel that meets the current technical requirements of visualization systems and Windows
  • special front panel with multi-touch and identical mounting points as Client 19 (old mounting material can be used)
  • design frames made of aluminum, acrylic or glass
  • power supply

Technical data

  • Touch panel with adapter frame for existing flush-mounted box
  • TFT-LCD 18,5″ Display, 1920 x 1080
  • projective capacitive (Multitouch)
  • touch frames in various front designs with black or white glass, modern materials such as acrylic glass or aluminum
  • optionally also as a display (TD)
  • speaker, microphone
  • USB port and reset function on the front panel
  • working temperature: 0 up to 40°C
  • storage temperature: -20 up to 60°C
    relative humidity: 10 up to 80%, not condensing
  • power input: 12 - 24V/DC





Order info

Display Projective Capacitive Multitouch
18,5″ TFT-LCD 1920 x 1080
Design Acrylic, glass, or aluminum
Color: silver, white, or black
Equipment Intel N97 Quad-Core CPU (fanless), 8GB RAM, 128GB SSD, microphone and speakers, 110-240V AC, Windows 11 IoT Enterprise LTSC 2024
Optional: Intel Core i5 1135G7 (fanless), 16GB RAM, 128GB SSD, microphone and speakers, 110-240V AC, Windows 11 IoT Enterprise LTSC 2024

Additional equipment

Operating systems
Linux

Mounting

 UPG - Built-in box

Technical drawing

Gira Client19

Downloads
