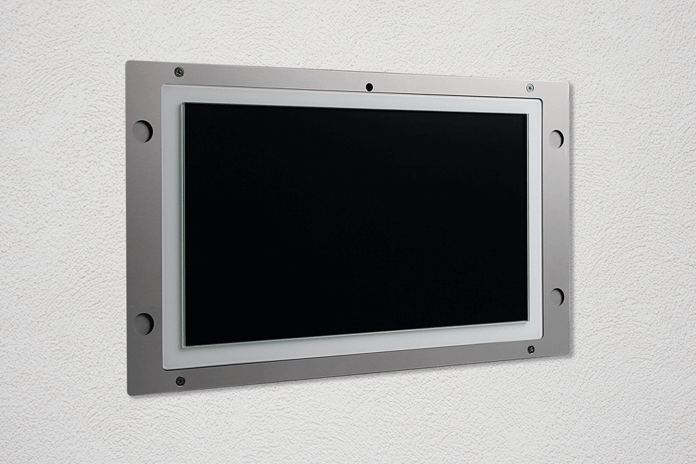

Replacement Kit Gira Client 19

Replacement Kit Gira Client 19

  • replace outdated systems with new ones without mess or chiseling
  • quick and safe mounting
  • front design available in various materials and colors

This touch panel allows you to replace outdated systems with new ones without any mess or chiseling by using the existing flush-mounted boxes.

Thanks to a modern panel PC, new control units can be installed quickly and easily in an existing flush-mounted box. This ensures a smooth transition without any significant disruption to operations.

  • Special front panel with multi-touch glass, identical mounting points as the Gira panel
  • Additional panels made of acrylic/anodized aluminum with a brushed finish or glass with a smooth surface
  • The industrial power supply is prepared for installation in the Gira installation housing
  • Equipped with a quad-core industrial board as standard, optionally also available with the latest Core i technology or as a touch monitor.



Your benefits at a glance:

The replacement kit components:
  • easy integration into existing flush-mounted boxes, no need to remove the old boxes
  • quick and safe mounting
  • support for applications/apps on Windows
  • touch panel that meets the current technical requirements of visualization systems and Windows
  • special front panel with multi-touch and identical mounting points as Client 19 (old mounting material can be used)
  • design frames made of aluminum, acrylic or glass
  • power supply



Request now Download Datasheet

Variants

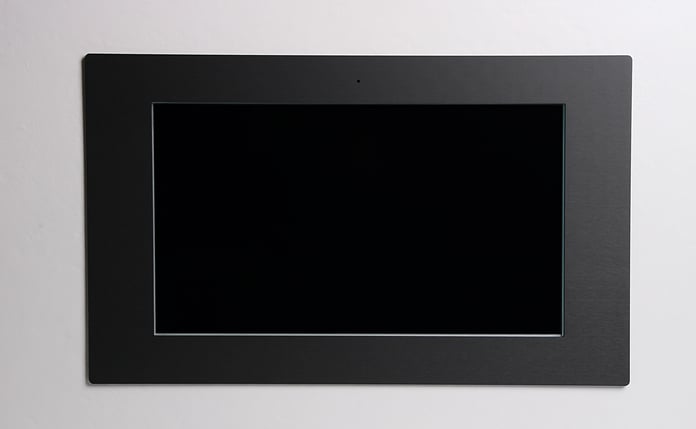

Gira19_Einbau_Alu_schwarz1
Aluminum, color black
 Gira19_Einbau_acryl_weiß1
Acrylic, color white

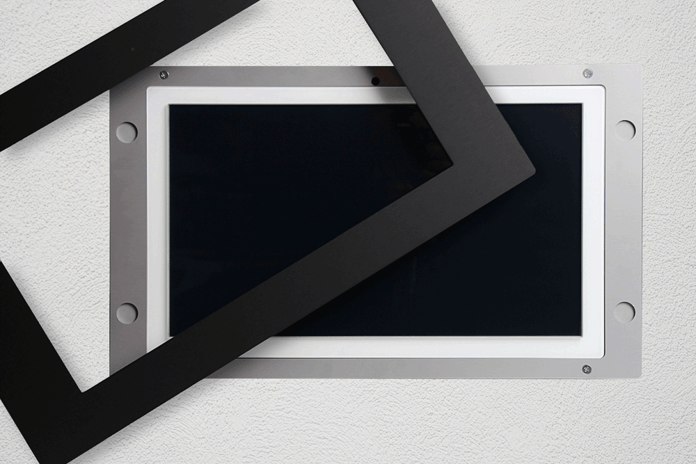

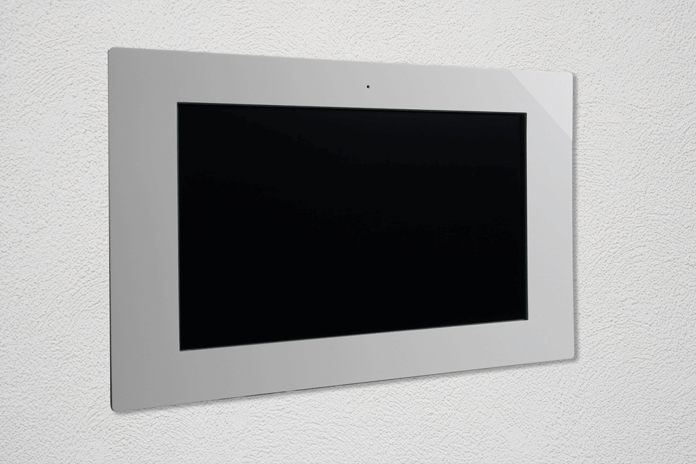

These pictures show the Gira Client19 in different design variants

Product information at a glance

Technical data

  • Touch panel with adapter frame for existing flush-mounted box
  • TFT-LCD 18,5″ Display, 1920 x 1080
  • projective capacitive (Multitouch)
  • touch frames in various front designs with black or white glass, modern materials such as acrylic glass or aluminum
  • optionally also as a display (TD)
  • speaker, microphone

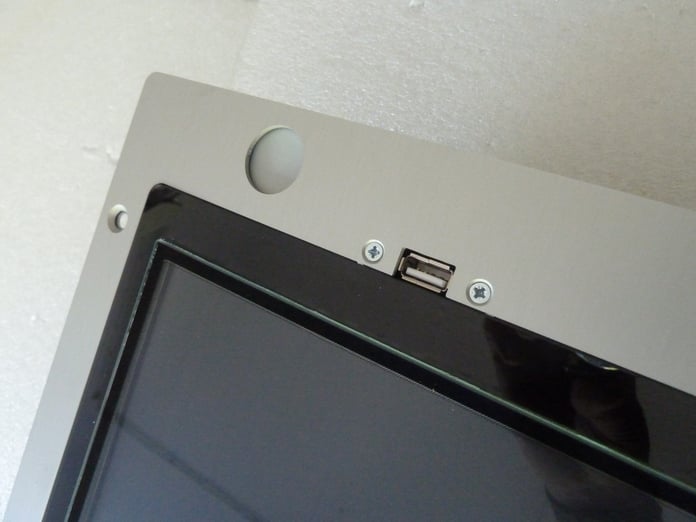

  • USB port and reset function on the front panel
  • working temperature: 0 up to 40°C
  • storage temperature: -20 up to 60°C
  • relative humidity: 10 up to 80%, not condensing
  • power input: 12 - 24V/DC





Order info

Display

Projektiv Kapazitiv Multitouch
18,5″ TFT-LCD  1920 x 1080

Design
Acryl, Glas oder Aluminium
Farbe silber, weiß oder schwarz

Equipment
Intel Celeron J6412 CPU, Intel UHD Graphics, fanless, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 8GB DDR3, 128GB  SSD, speakers, microphone, Windows 10 IoT LTSC 2021
Optional:  Intel i5 1135G7 CPU, Intel Iris Graphics, fanless, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 1x COM Port, 16GB DDR3

Additional equipment

Operating systems
Linux

Mounting

 UPG - Built-in box

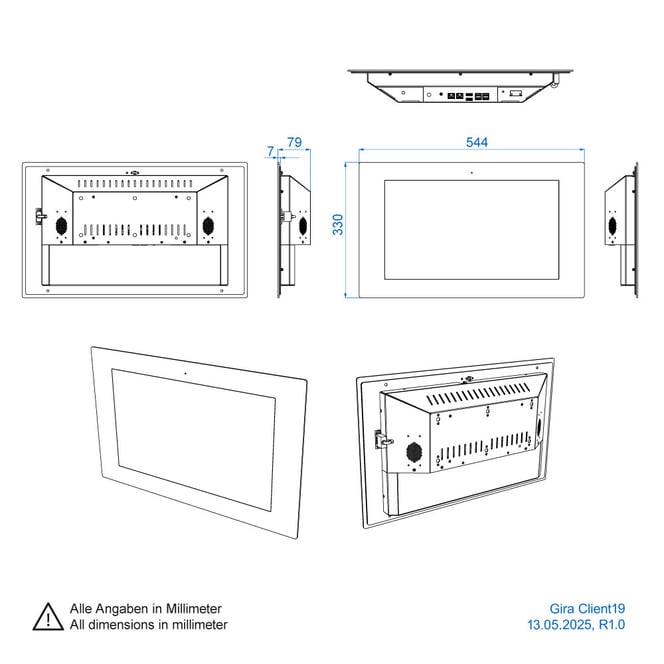

Technical drawing
