Touch-Panel F10T

F10T-VI

The enclosed panel solution for demanding industrial environments

Durable. Hygienic. Versatile.

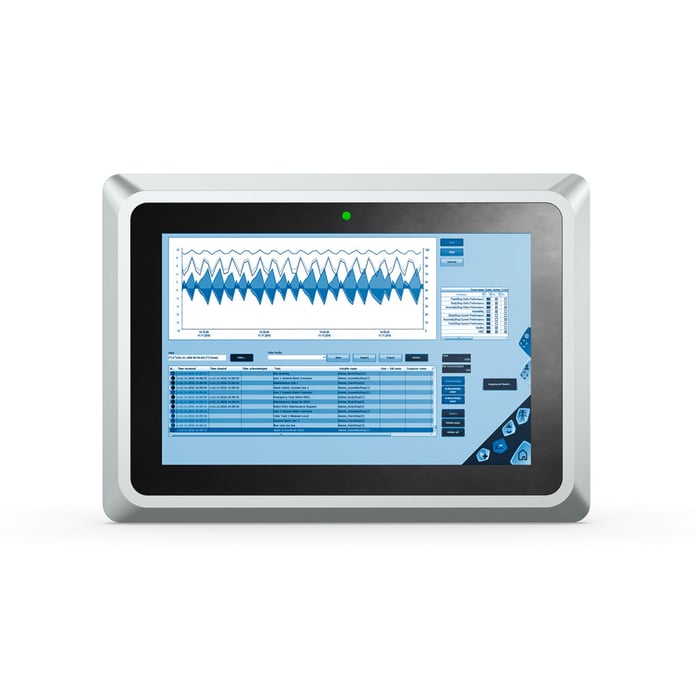

F10T with aluminum housing

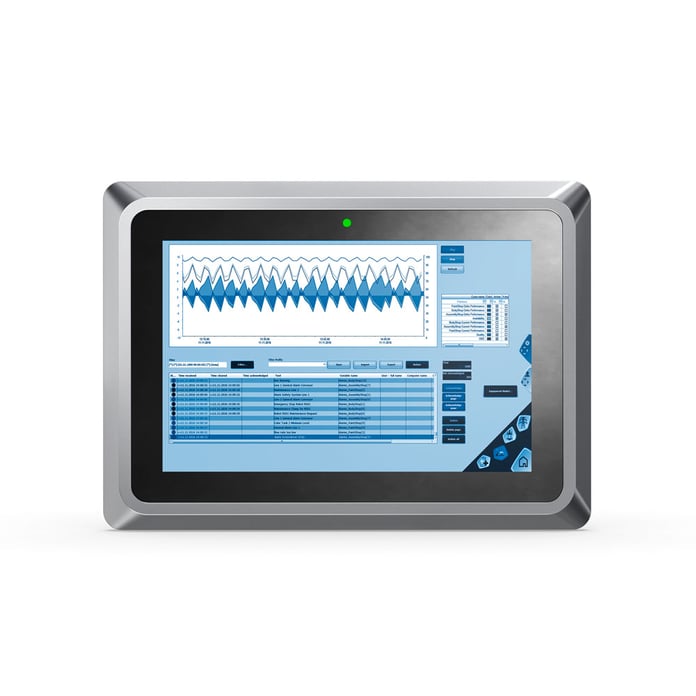

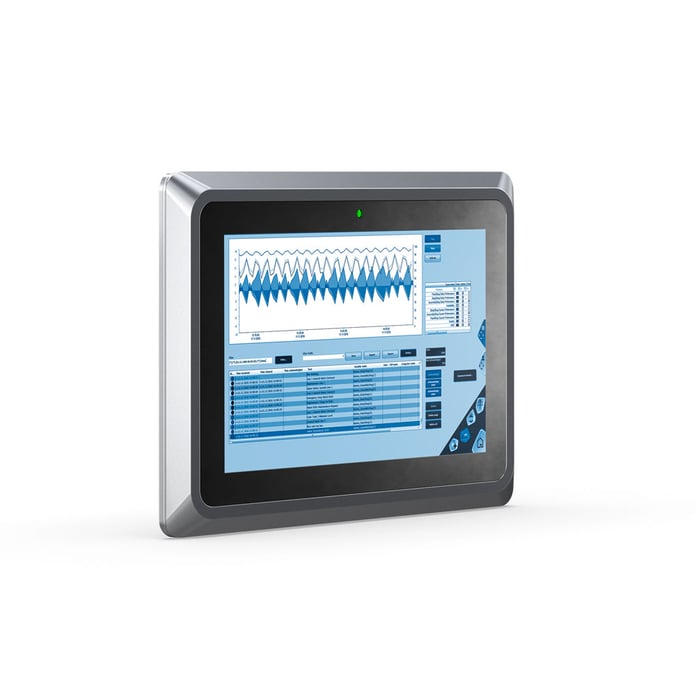

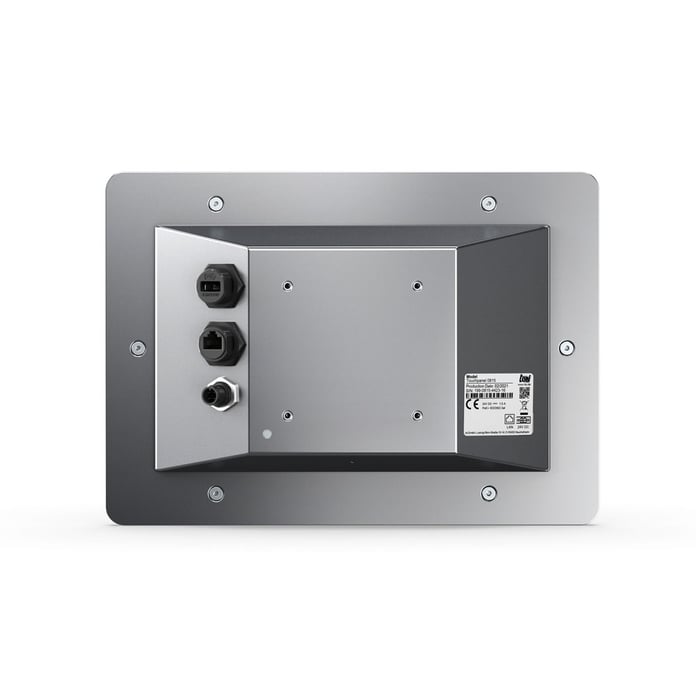

Available as a stainless steel version for the highest hygiene requirements

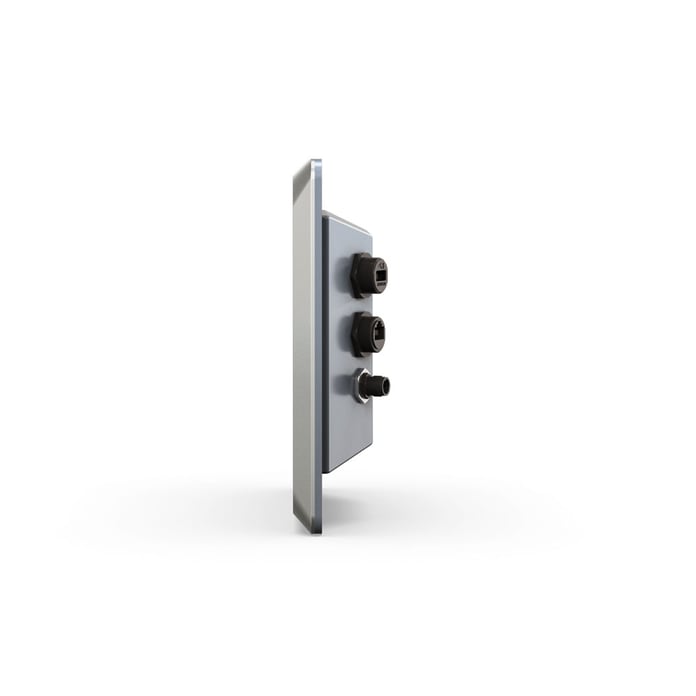

Protected ports for USB, LAN and power supply

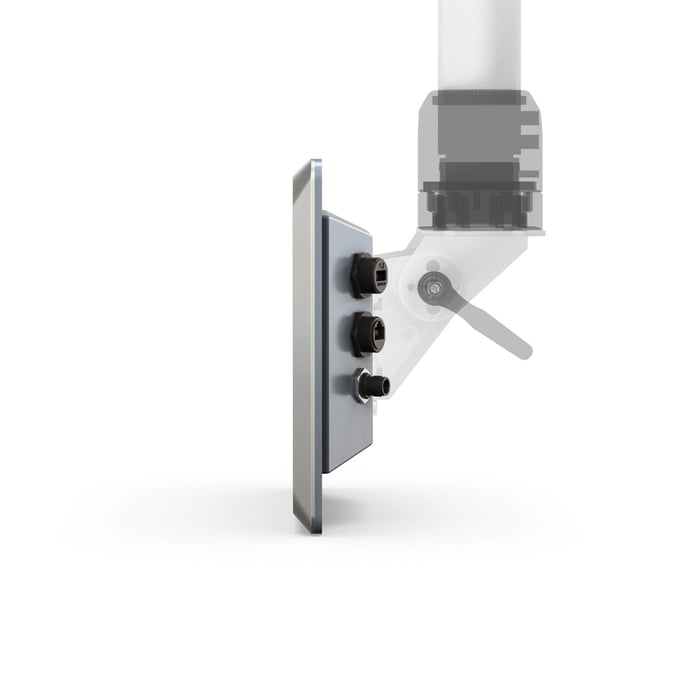

Direct mounting on support arm systems

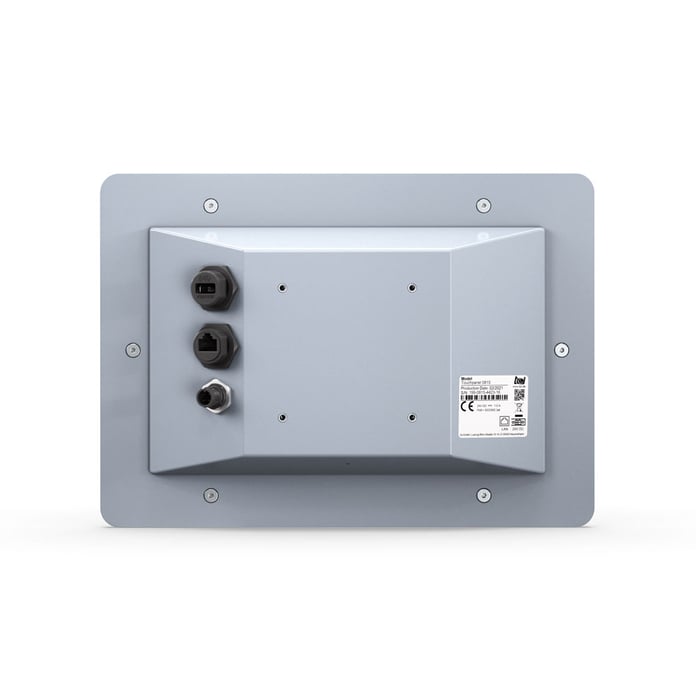

F10T Connection panel

The F10T-VI expands the F-Series with a fully enclosed terminal solution for VESA-compatible arm mounting. The capacitive multi-touch display is seamlessly integrated into a milled aluminum front panel. The back panel is also made of aluminum and powder-coated.

For hygienically demanding environments, a version with a complete stainless steel housing (front and back) is available as an option. The fanless system is fully protected to IP65 standards – including all power and network connections. Mounting is via the VESA75 standard, allowing for easy integration into existing support arm systems.

Equipped with a Yocto-based Linux operating system, it follows the "Design by Secure" principle and offers the highest level of security for your industrial HTML5 applications.



Applications areas

  • Mechanical and plant engineering
  • Process visualization
  • Measurement and testing technology
  • Control panels in control cabinets and production cells
  • Embedded HMI for decentralized controllers and gateways
  • Edge devices / IoT nodes with local visualization
  • Packaging and conveying technology
  • Energy and environmental technology (e.g. water treatment, energy distribution)

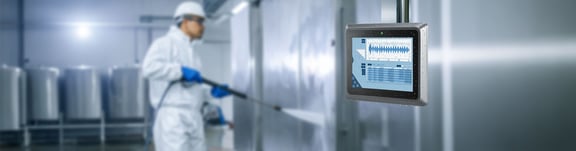

  • Hygiene areas in the food and pharmaceutical industries
  • Cleanroom technology and laboratory automation
  • Building infrastructure

The completely in-house developed hardware and software guarantee maximum independence, availability and the highest quality – Made by tci.

Request now Download Datasheet

Product information at a glance

Technical data

  • Touch panel for mounting arm
  • 10.1“ LED-TFT, 1280 x 800, 400 cd/m², WXGA
  • capacitive multitouch (PCT)
  • aluminum housing with IP65 protection class
  • optional stainless steel housing
  • fanless
  • protected ports for USB, LAN and power supply
  • working temperature: 0 up to +50°C
  • storage temperature: 0 up to +70°C
    relative humidity: 10 up to 90%, not condensing
  • power input: 24 VDC, 1.0 A and PoE+
    IEEE Std 802.3at (class 4)
  • weight: 1,7 kg (aluminum housing) / 3,3 kg (stainless steel housing)



Highlights

  • HTML5: Easy integration of modern web applications without programming knowledge
  • Setup wizard: Guided setup for quick and easy integration
  • The scalable modular system enables over-the-air updates and offers a secure cloud-on-premise solution for your fleet management
  • IP65 all around
  • VESA75 compatible: Direct mounting on support arm systems
  • Optionally available entirely in stainless steel: For use in hygiene and cleanroom applications
  • High screen resolution of 1280x800

Order info

F10T-VI
Embedded HMI Touch Panel, 10" Touch, Embedded CPU Board, Rockchip RK3399 dual core Cortex A72 + quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000, PoE+, OE/Yocto as part of the scalable modular system

Options
Cable protection for LAN cables with RJ45 crimp connectors
Housing also available in stainless steel

Customized
For other configurations please ask our system consultants

Operating systems

 OE/Yocto as part of the scalable modular system

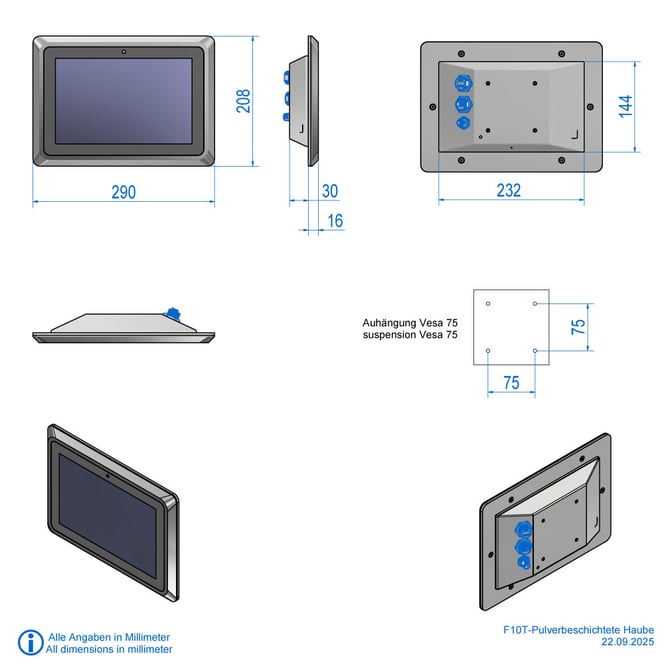

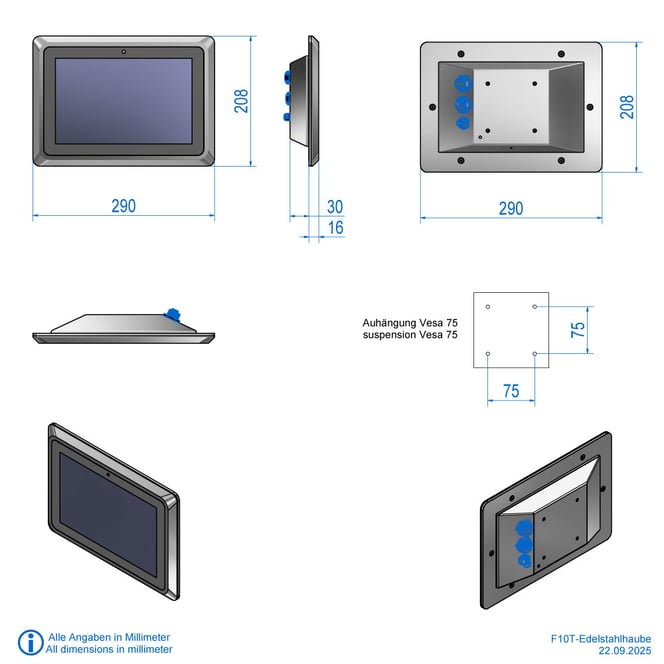

Technical drawing
