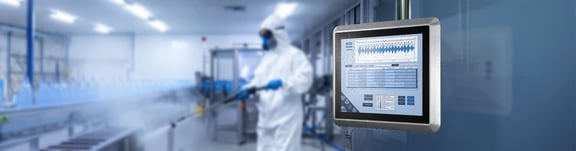

Touch-Panel F19T

F19T

The enclosed panel solution for demanding industrial environments

Durable. Safe. Versatile.

F19T Front

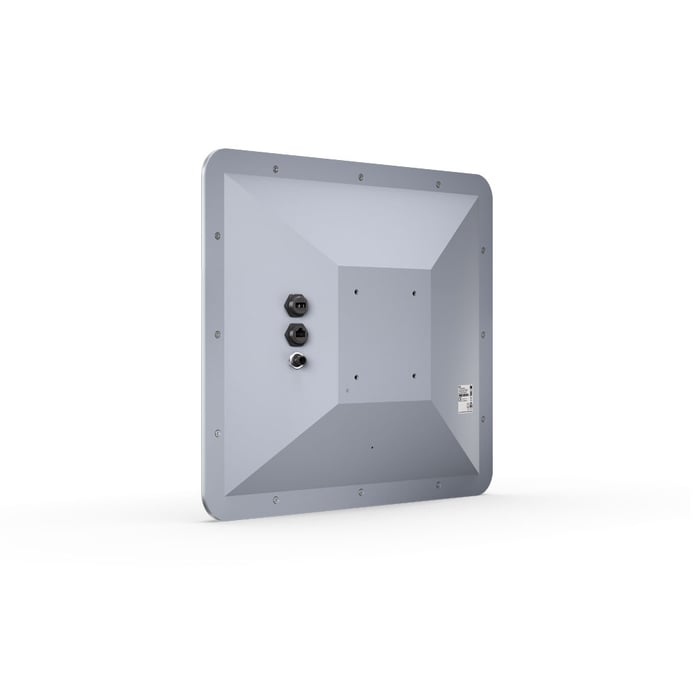

F19T Rear side

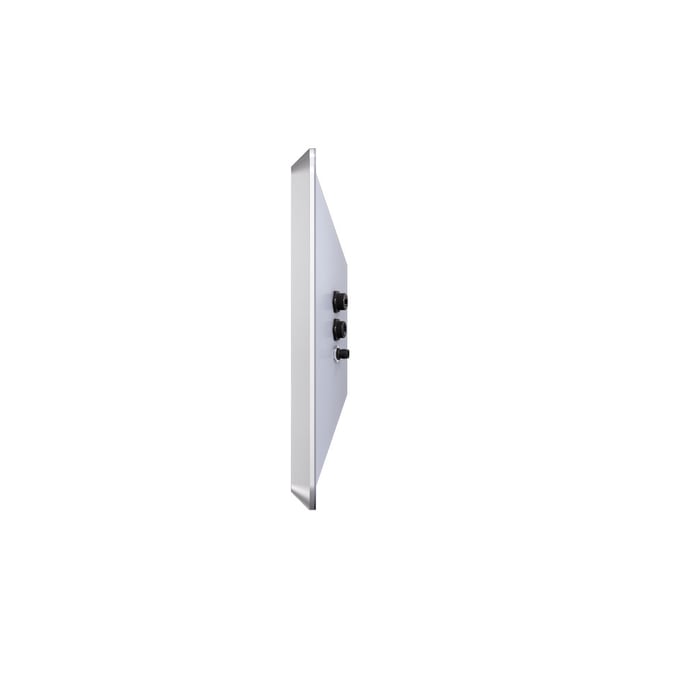

F19T Connection panel
Direct mounting on support arm systems

The F19T expands the F-series with a fully enclosed terminal solution for the support arm. The robust 19-inch touchscreen offers a generous display area in standard resolution and is ideally suited for industrial control and visualization tasks. The capacitive glass touchscreen is seamlessly integrated into the milled aluminum front panel. The back panel is also made of aluminum and powder-coated.

The support arm bracket is mounted on the back using the standard VESA 100 connection. The power supply and LAN connections also meet IP65 protection standards.

In addition to the PC-based system, the Yocto-based Linux system is available, which follows the "Design by Secure" principle and offers maximum security for your industrial HTML5 applications.



Einsatzbereiche

  • Mechanical and plant engineering
  • Process visualization
  • Measurement and testing technology
  • Control panels in control cabinets and production cells
  • Embedded HMI for decentralized controllers and gateways
  • Edge devices / IoT nodes with local visualization
  • Packaging and conveying technology
  • Energy and environmental technology (e.g. water treatment, energy distribution)
  • Building infrastructure

The completely in-house developed hardware and software guarantee maximum independence, availability and the highest quality – Made by tci.

Request now Download Datasheet

Variants

F19T-PC (Windows, Linux Touchpanel) windows_logo_60x60px Linux_pinguin_60x69px

The touch panel PC is suitable wherever powerful applications are to be used under Windows or Linux. Since there are no moving parts such as fans and HDD, the PC is completely maintenance free and designed for continuous operation 24/7/365.



F19T-VI (Linux Touchpanel) smartstart_pack_transparent200x279

The embedded HMI touch panel as part of the scalable modular system offers many security features and an installation wizard.

Product information at a glance

Technical data

  • Touch panel for mounting arm
  • 19“ LED-TFT, HD 1280 x 1024, 350 cd/m²
  • capacitive multitouch (PCT)
  • aluminum housing with IP65 protection class
  • fanless
  • protected ports for USB, LAN and power supply
  • working temperature: 0 up to 50°C
  • storage temperature: 0 up to 70°C
    relative humidity: 10 up to 90%, not condensing
  • power input: 24 VDC



Highlights

  • HTML5: Easy integration of modern web applications without programming
  • Setup wizard: Guided setup for quick and easy integration
  • The scalable modular system enables over-the-air updates and offers a secure cloud-on-premise solution for your fleet management
  • IP65 all around
  • VESA100 compatible: Direct mounting on support arm systems
  • Windows 11-IoT



Order info

F19T-PC
Board 3.5" SBC, Intel® N97 CPU (Alder Lake), 4x max. 3.6GHz, 2x SO-DIMM DDR5, 4800MHz max. 16GB, Dual 2.5GbE LAN, Intel UHD Graphics, TPM2.0 OnBoard, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 2x USB 2.0, Audio, 1x COM (RS-232/422/485)

F19T-VI
Android-Panel, 19" Touch, Embedded CPU Board, Rockchip RK3399 dual core Cortex A72 + quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000,  Yocto (Linux) as part of the scalable modular system

Options
Cable protection for LAN cables with RJ45 crimp connectors

Customized

Operating systems

 Windows 10 IoT LTSC 2021, Windows 11 IoT LTSC 2024, others on request
Yocto (Linux) as part of the scalable modular system

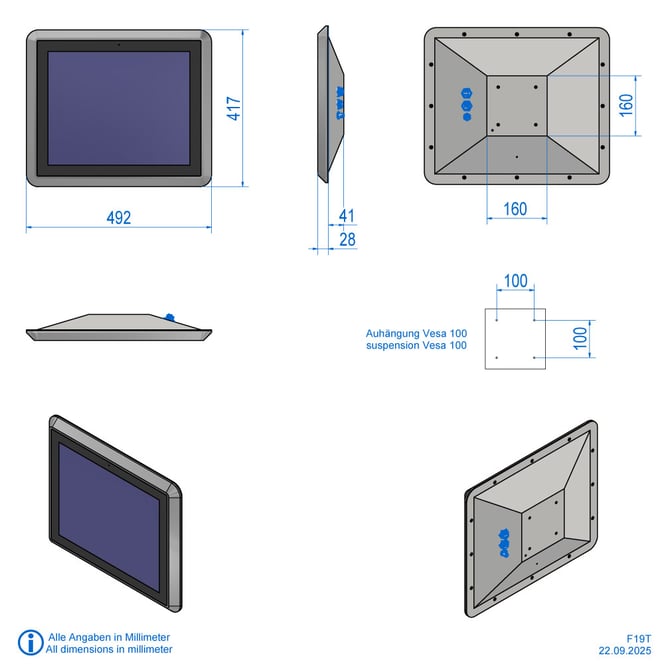

Technical drawing
