luna22
- 22-inch Android- or Windows-Panel
-
integrated microphone and speaker with echo canceling
-
2 mounting options: flush-mounted, flush-mounted
The luna22 boasts a timeless design and impresses with its high-performance hardware for building automation. The 22-inch Full HD capacitive multi-touch display is particularly bright and user-friendly.
In addition to the Windows-based PC version, we also offer the system as a VI version with Android as the operating system, or alternatively with Yocto from the Linux family as part of the scalable module system. This makes the touch panels suitable for building control, conference technology, and digital signage.
The integrated microphone and the speaker with echo canceling enables freehand talking in high audio quality.
luna can be built-in box (UPG) or flush into the wall (EPG). Particularly the flush mounted version fulfills the esthetic requirements of modern architecture.
Variants
|
Installation into EPG |
Installation into UPG |
These images show the luna10 in different installation situations
Product information at a glance
Technical data
- 22" multitouch panel with continuous glass surface, 250 cd/m², 1920 x 1080 Full HD
- tci-Embedded VI Board or tci-Baseboard
- integrated bicolor LED
-
integrated speaker
-
ICOM: composite unit with integrated echo compensation for full-duplex audio communication
- PoE+
-
working temperature: 0 up to 35°C
-
storage temperature: -20 up to 60°C
-
relative humidity: 10 up to 80%, not condensing
- power input: 24 VDC
Order info
luna22-VI |
22" multitouch panel with continuous glass surface, 1920 x 1080 Full HD, 250 cd/m², embedded VI Board, Rockchip RK3399 Hexa-Core CPU, 2GB RAM, 32GB eMMC, integrated speaker, Ethernet 100/1000, USB2.0, ICOM, Android 9 (Pie)
Design: black |
luna22-PC |
22" touch , tci-Baseboard Intel Atom “Apollo Lake” Dual Core CPU E3930, 2x 1,8GHz, Intel HD500, 4GB RAM, 128GB SSD, KNX (optional), ICOM, PoE+, contatto FlatClient Extended (VoIP/SIP Client), Windows 10 IoT LTSC 2021
Design: black |
Power consumption
|
Operating status
|
luna22-VI
P in W |
luna22-PC
P in W |
|
Operate under full load, display max. brightness
|
16,0
|
32,4
|
|
Operate under Idle-Loop, display max. brightness
|
7,6
|
26,4
|
|
Operate, display off
|
2,2
|
4,8
|
|
Standby
|
-
|
1,1
|
|
Shutdown
|
0,5
|
0,9
|
Additional equipment
Operating systems |
luna22-VI: Android 9, Yocto (Linux) as part of scalable module system |
pureKNX-App
|
Visualization app for display and operation of the pureKNX building control system. Only devices with the same display size and mounting position can display the pureKNX visualisation |
BBoardKNX
|
Integrate interface board, installation bus EIB/KNX, indirectly coupled, protocol EMI |
Mounting |
EPG - Built-in box for flush mounting (including HMK) UPG - Built-in box (optionally with HMK) MONT(R2) - Mounting support set with straight plates for plastering HMK - Cavity wall mounting kit consisting of bracket and installation template |
luna Connection Kit |
Bracket for up to two Keystone RJ45 Slim Modules. Included in delivery - 1x keystone adapter and connection cable set. Can be used for UPG and EPG |
NT-HUT-24VDC-100W |
External top hat rail power supply, primary 85-264 VAC, secondary 24 VDC, 100W, 4DU |
contatto
|
LobbyClient |

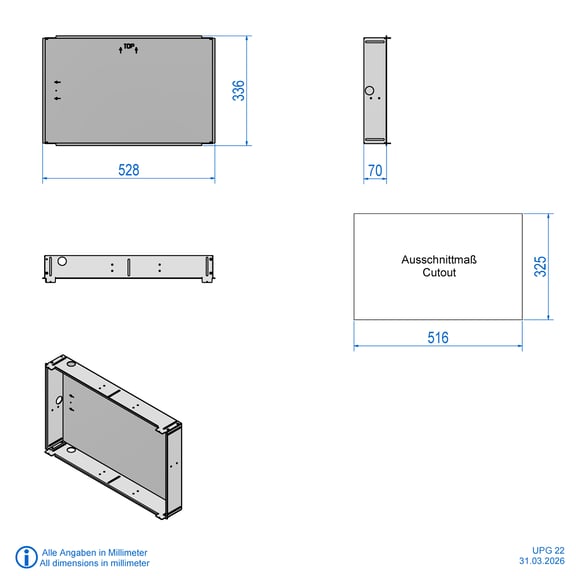

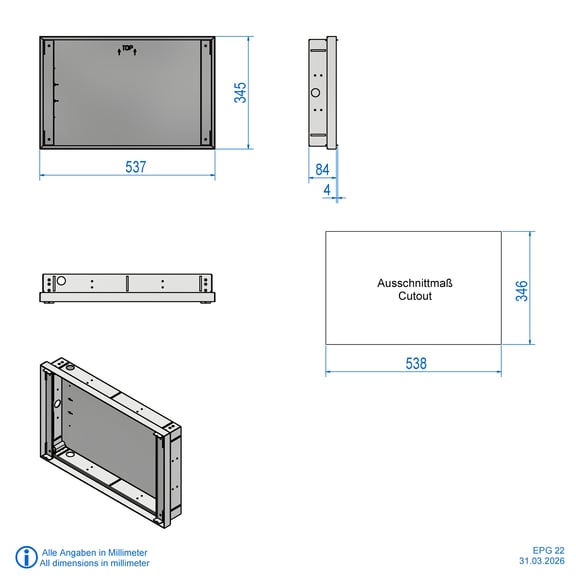

Technical drawing
