Touch-Panel WP7A

Touchpanel WP7A

Modern HTML5 web panel for industrial applications

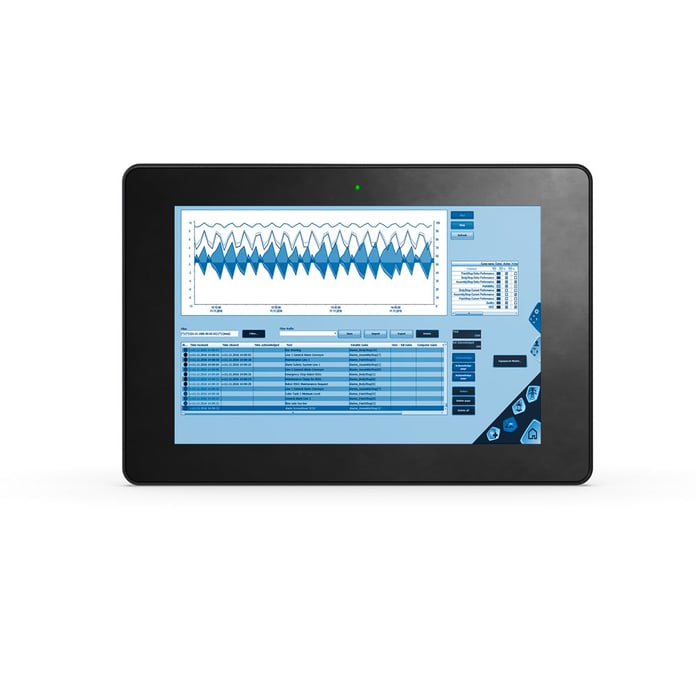

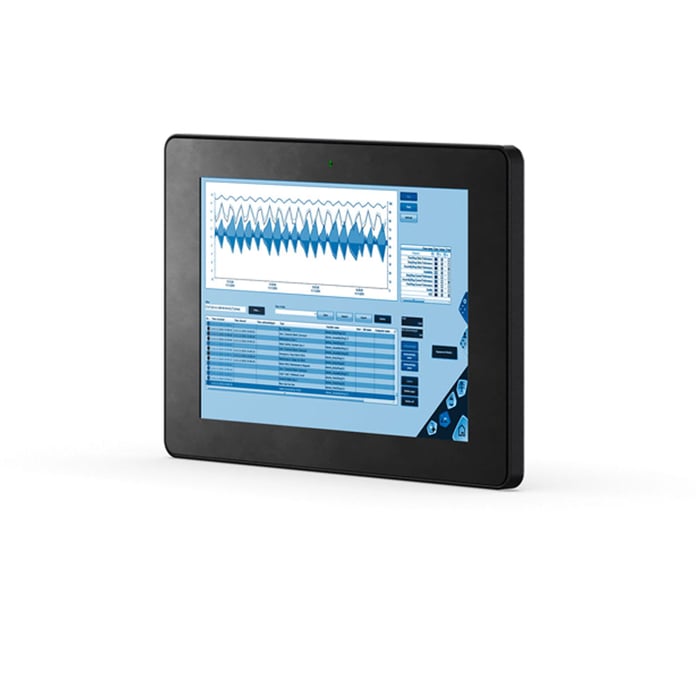

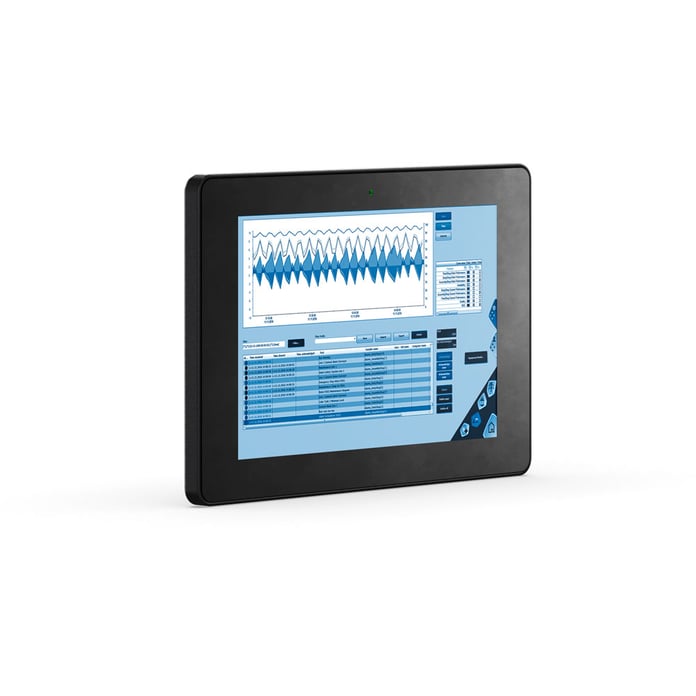

WP7A Front

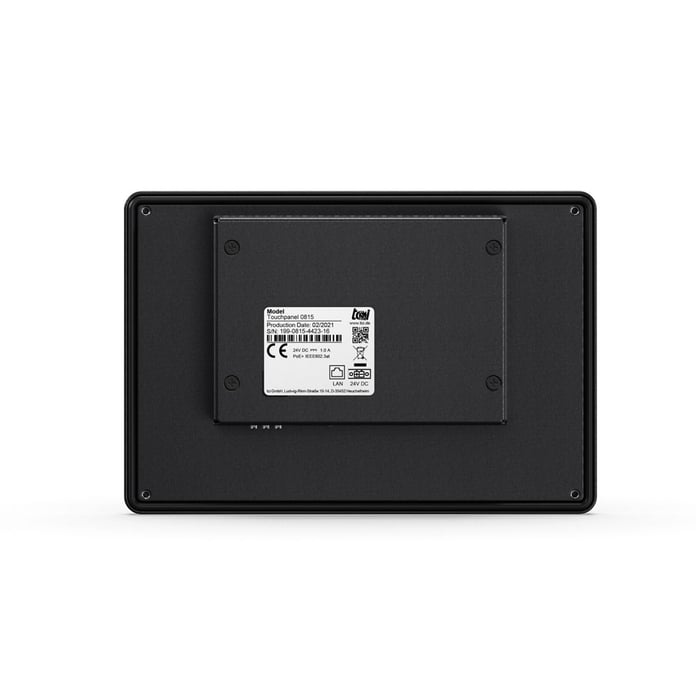

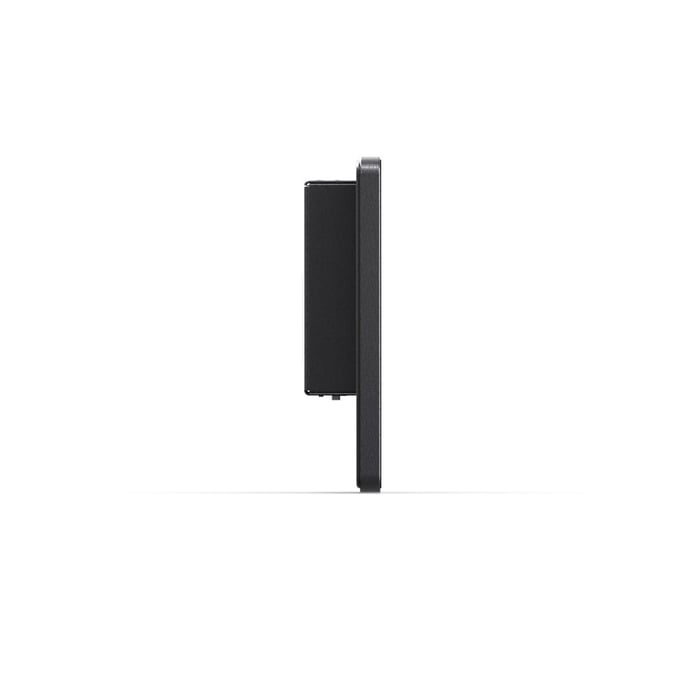

WP7A Connection panel

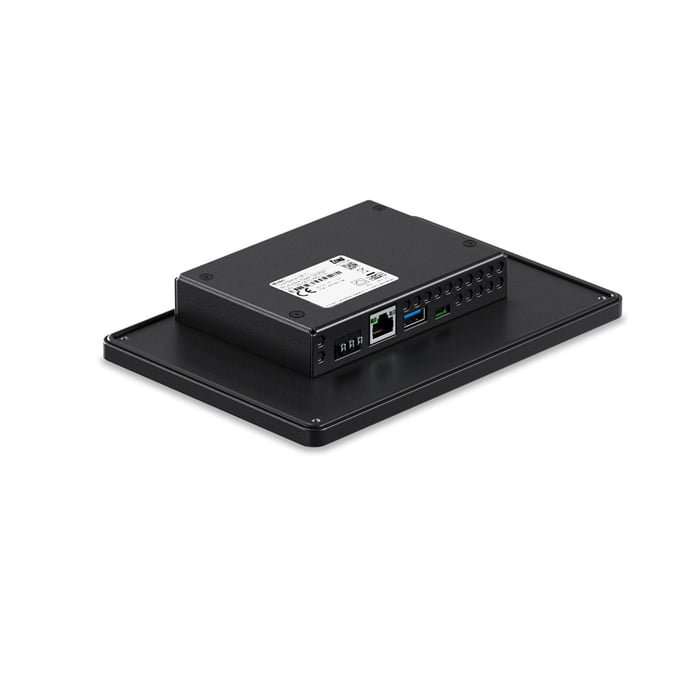

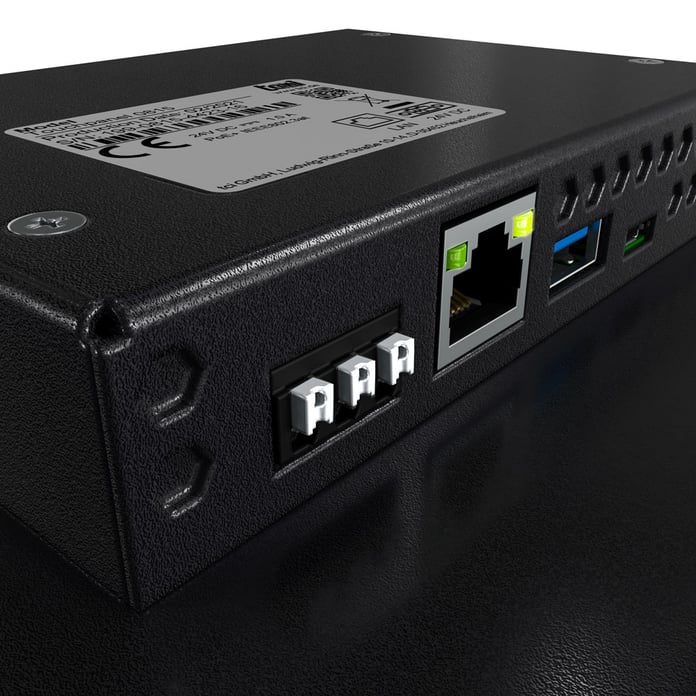

Push-in connectors

The new WP7A touch panel is a robust, built-in device for installation in a control panel or switchboard. Featuring a 7" touchscreen, it boasts a modern glass design integrated into a durable aluminum front. Equipped with a Linux-based Yocto operating system, it adheres to the "Design by Secure" security approach, offering the highest cybersecurity standards for a wide range of applications. Thanks to the setup wizard, HTML5 applications can be integrated – even without programming knowledge. The fully in-house developed hardware and software guarantee maximum independence, availability, and the highest quality – Made by tci.

The WP7A is compatible with our E07A in terms of installation. Push-in connections and direct mounting reduce installation time.

Applications areas

  • Mechanical and plant engineering
  • Process visualization
  • Measurement and testing technology
  • Control panels in control cabinets and production cells
  • Embedded HMI for decentralized controllers and gatewaysEdge devices / IoT nodes with local visualization
  • Packaging and conveying technology
  • Energy and environmental technology (e.g. water treatment, energy distribution)
  • Building infrastructure
Request now Download Datasheet

Product information at a glance

Technical data

  • Touch panel for panel mounting
  • 7“ LED-TFT , 1280 x 800, 350 cd/m²
  • capacitive multitouch
  • Optical bonding ensures a sharp and brilliant display image, low reflections and an excellent reading angle
  • bicolor Status LED
  • Aluminium front IP65
  • working temperature: 0 up to 50°C
  • storage temperature: 0 up to +70°C
    relative humidity: 10 bis 90%,  not condensing
  • power input: 24 VDC, 1.0 A, Push-In connections
  • weight: 0,6 kg



Highlights

  • HTML5: Easy integration of modern web applications without programming knowledge
  • Setup wizard: Guided setup for quick and easy integration
  • The scalable modular system
    enables over-the-air updates and offers a secure cloud-on-premise solution for your fleet management
  • Easy mounting: Push-in connections and direct panel mounting (WP10A eccentric mounting) reduce installation effort
  • High screen resolution of 1280x800
  • E07A-compatible: Replacement without mechanical adjustments required



Order info

WP7A
Embedded HMI Touchpanel, 7" Touch, CPU Board Rockchip RK3399 dual core Cortex A72 + quad-core Cortex A53, 4GB RAM, Integrated Graphics Controller, 32GB eMMC storage, Ethernet RJ45 100/1000Mbit, 1x USB-A, 1x microUSB, Socket for micro-SD cards, Pin header for optional modules, OE/Yocto as part of the scalable modular system

Customized
For other configurations please ask our system consultants

Operating systems

 OE/Yocto as part of the scalable modular system

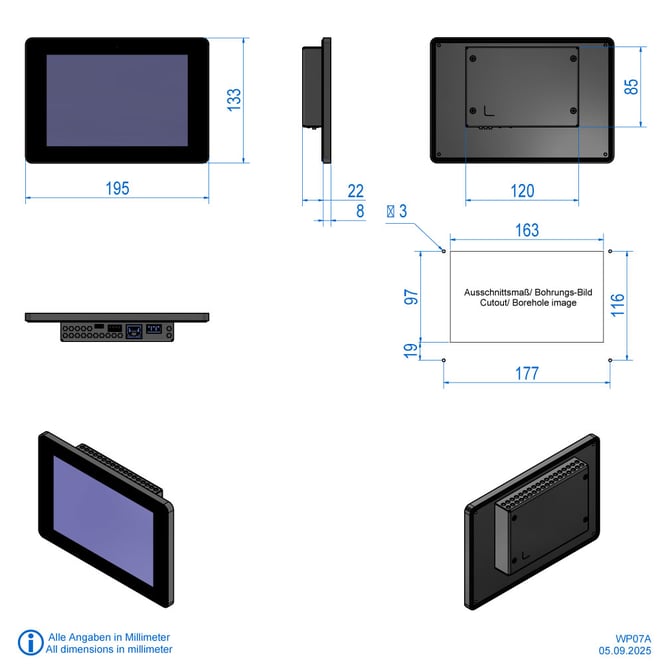

Technical drawing
