Touch-Panel C70-XS

  • especially for the CoDeSys web visualization
  • maintenance-free and ultra-compact design
  • tci's XS-technology based

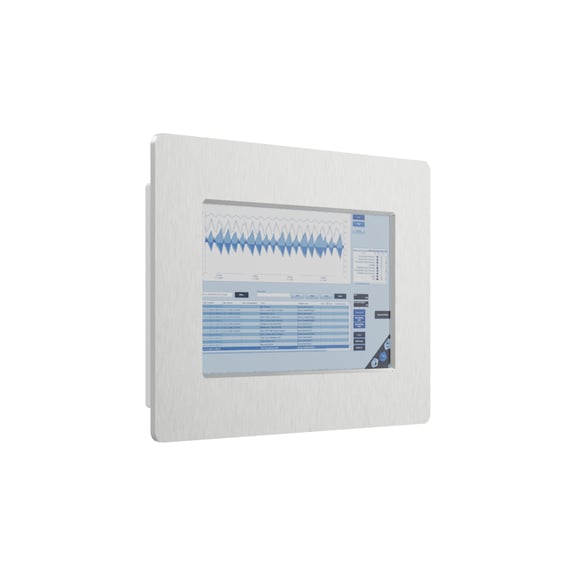

7" Touch Panel with Installed Micro Browser

Thanks to its ultra-compact design, the C70-XS can be installed in any control cabinet or control panel. The C70-XS is a 7" touch panel specifically designed for CoDeSys web visualization, as well as for the visualization of programmable logic controllers (PLCs) from other manufacturers that feature an integrated web server. Its optimized hardware and built-in MicroBrowser ensure lightning-fast system startup and high performance during operation.

Request now
Aluminum panel PC LAN
Connection and operating field with LAN, Power-Input 24 VDC, Reset button
Panel PC for control cabinet
Seel between cabinet and front
Hygienic design touch panels
Front optionally in stainless steel
Touch panels CoDeSys and PLC visualization
Two mounting clamps on the top and bottom side ensure save and easy mounting

Variants

C70-XS (PLC control panel) XS-Technologie_Logo_100px

The optimal combination of MicroBrowser and hardware is described in "XS-technology" and ensures a fast system start and high performance during the operation. XS systems can be used as clients for OPC servers or can display any screens of other computers with the VNC client.

Technical data

  • equipped with 7" touch, VWGA 800 x 480
  • milled aluminium front, customised design possible
  • front optionally in stainless steel
  • protection class front IP54, rear side IP20
  • brightness- and temperatur sensors (optionally)
  • CodeSys support
  • Real VNC Server Version 5.0.3 compatible
  • working temperature: 0 up to 50°C
    relative humidity: 10 to 80% not condensing
  • storage temperature: -20 up to 70°C
    humidity: 10 to 90%, not condensing
  • power input:  24 VDC, 0.5 A
  • Power consumption: 5W



In Addition to the CoDeSys Web Visualization Controls from

  • Saia (alle PCD),
  • Phoenix Contact (ILC 1x0, ILC3x0)
  • Panasonic (FP Webserver)
  • Sabo, Schleicher (Xcx)
  • Siemens (CP 243/343/443 with Webserver)
  • Beckhoff (CX x000)
  • Wago (750-841, 750-871, 750-891)
  • Beck IPC (with CoDeSys)

 Learn more about the PLC variants and check your application using the compatibility list.

Order info

C70-XS PLC Panel, 7" Touch, embedded XS Board V8.0 ARM® Cortex®-M7 STM32H7 Mikrocontroller, 64MB SD-RAM 256Mbit, 64MB 256Mbit SPI NOR Flash, Ethernet 10/100, USB-A, equipped with MicroBrowser SpiderControl CoDeSys v3.x for XS technology
Options Front optionally in stainless steel
Customized For other configurations please ask our system consultants
Download Datasheet

Technical drawing

C70-XS
