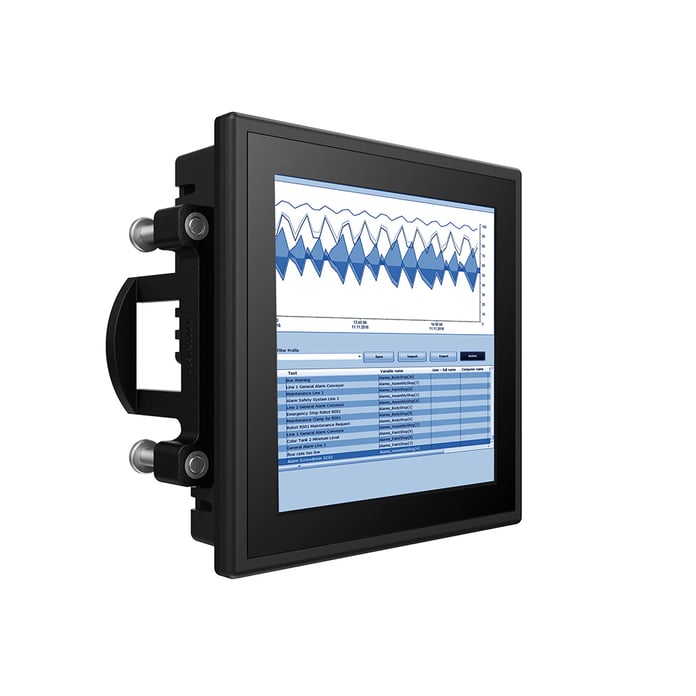

Touch-Panel E04A

Touch Panel E04A

  • web based touch panel in conventional analog display instruments format
  • for energy and supply technology
  • IP52 front in 96x96 standard format
Touchpanel 4 inch
Touch panel 4 inch RJ45 and RS-485
LAN (PoE), I/O-Board with RJ45 and RS-485 on terminal block (e.g. for Modbus)

This web-based 4-inch touch panel with a 96x96 mm format is particularly suitable for energy and supply technology. The fanless yet robust touch panel offers IP52 protection on the front and a lightweight, industrial-grade plastic housing. Equipped with a Yocto-based Linux operating system, it follows the "Design by Secure" principle and offers the highest security for your industrial HTML5 applications.
Alternatively, we offer the system with 7 inch and 10 inch touch.

Request now Download Datasheet

Product information at a glance

Technical data

  • 4" PCT-touch, 300cd/m², 720 x 720
  • plastic front IP52
  • brightness sensor and proximity switch
  • Embedded VI Board
  • Rockchip RK3288 CPU
  • PoE (Power-over-Ethernet - Mode A, class 0)
  • Ethernet 10/100
  • 1x Micro USB
  • RS-485 on terminal block (e.g. for Modbus)
  • working temperature: 0 up to 50°C
  • storage temperature: -20 up to 70°C
    relative humidity: 10 up to 80%, not condensing
  • power input:  24 VDC or PoE, 0.5 A
    IEEE Std 802.3af (Mode A, Class 0)

Order info

E04A-VI

PLC panel, 4" touch screen for panel mounting, Yocto (Linux) as part of the scalable modular system

Customized

For other configurations please ask our system consultants

Operating systems

Yocto (Linux) as part of the scalable modular system
Android on request

Technical drawing

Downloads
