Touch-Panel E04A

Touch Panel E04A

  • web based touch panel in conventional analog display instruments format
  • for energy and supply technology
  • IP52 front in 96x96 standard format
Touchpanel 4 inch
Touch panel 4 inch RJ45 and RS-485

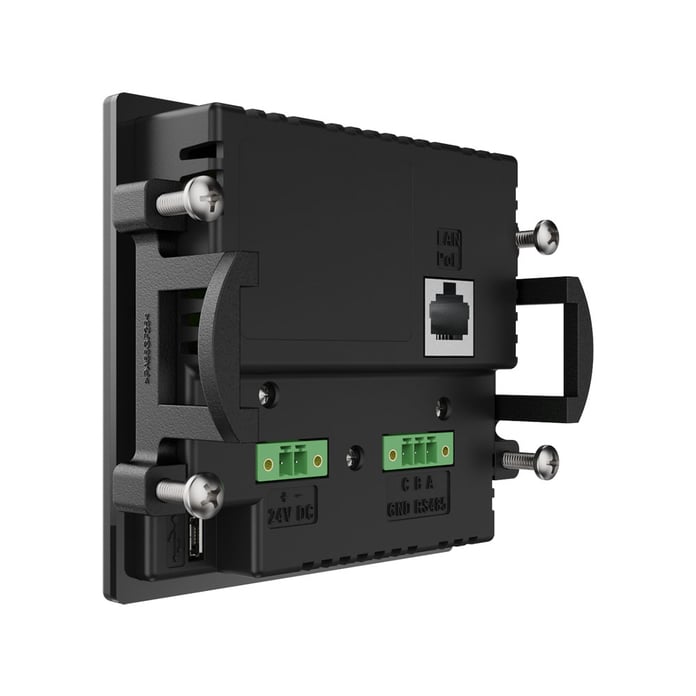

LAN (PoE), I/O-Board with RJ45 and RS-485 on terminal block (e.g. for Modbus)

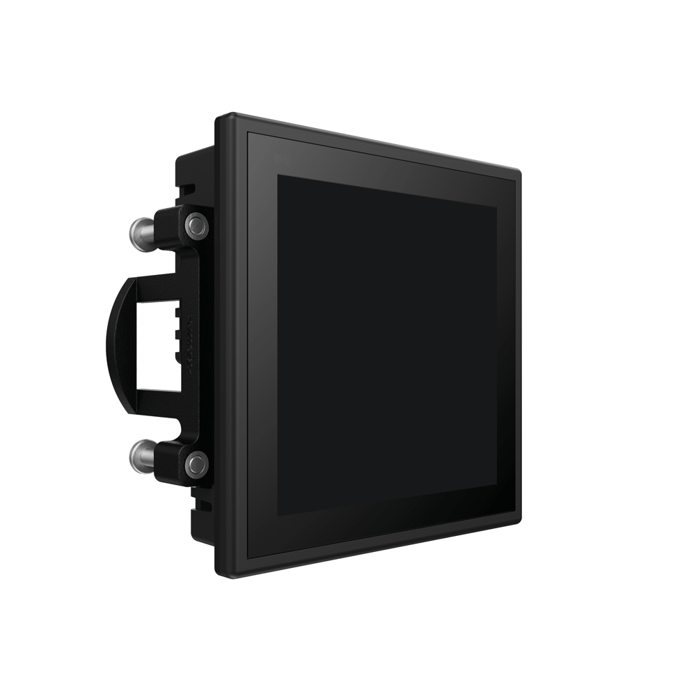

This web-based 4-inch touch panel with a 96x96 mm format is particularly suitable for energy and supply technology. The fanless yet robust touch panel offers IP52 protection on the front and a lightweight, industrial-grade plastic housing. Equipped with a Yocto-based Linux operating system, it follows the "Design by Secure" principle and offers the highest security for your industrial HTML5 applications.
Alternatively, we offer the system with 7 inch and 10 inch touch.

Request now Download Datasheet

Product information at a glance

Technical data

  • 4" PCT-touch, 300cd/m², 720 x 720
  • plastic front IP52
  • brightness sensor and proximity switch
  • Embedded VI Board
  • Rockchip RK3288 CPU
  • PoE (Power-over-Ethernet - Mode A, class 0)
  • Ethernet 10/100
  • 1x Micro USB
  • RS-485 on terminal block (e.g. for Modbus)
  • working temperature: 0 up to 50°C
  • storage temperature: -20 up to 70°C
    relative humidity: 10 up to 80%, not condensing
  • power input:  24 VDC, 0.5 A or PoE
    IEEE Std 802.3af (Mode A, Class 0)

Order info

E04A-VI

PLC panel, 4" touch screen for panel mounting, OE/Yocto as part of the scalable modular system

Customized

For other configurations please ask our system consultants

Operating systems

OE/Yocto as part of the scalable modular system
Android on request

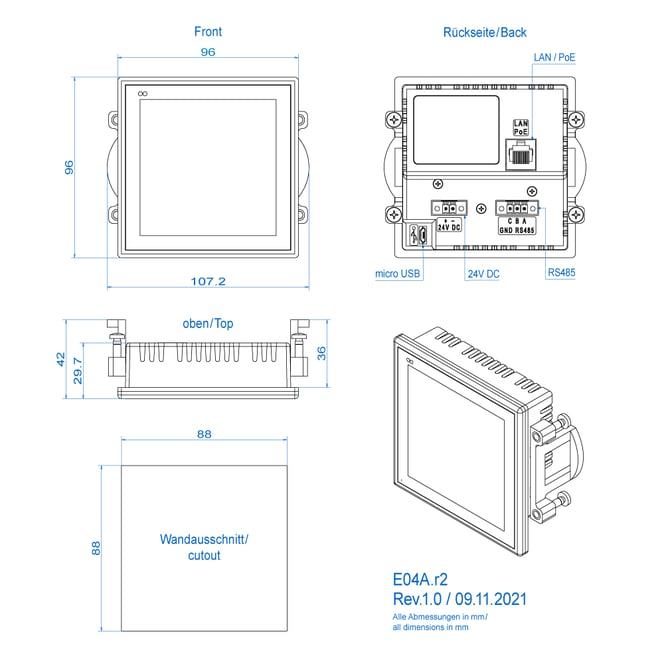

Technical drawing
