Touch Panel Edition5

Modern visualization and control solution

  • Exclusive touch PC, hand made
  • Choose your bus-system
  • Simple one-man installation with Rapid mounting
  • Fits in housings from various manufacturers
 tci technical icons 60x6019Zoll Displaytci technical icons 60x60Touchtci technical icons 60x60Fanlesstci technical icons 60x60Soundtci technical icons 60x60Win11       Request now Download Datasheet

Timeless and elegant design

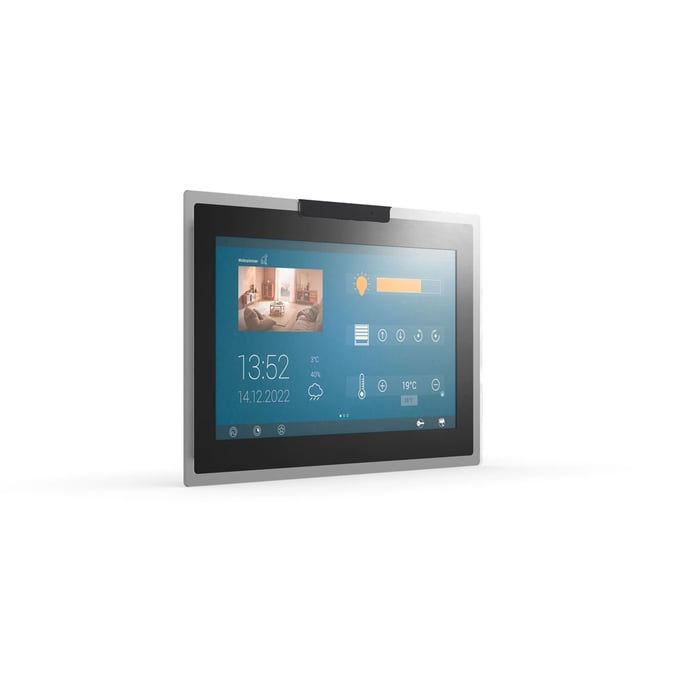

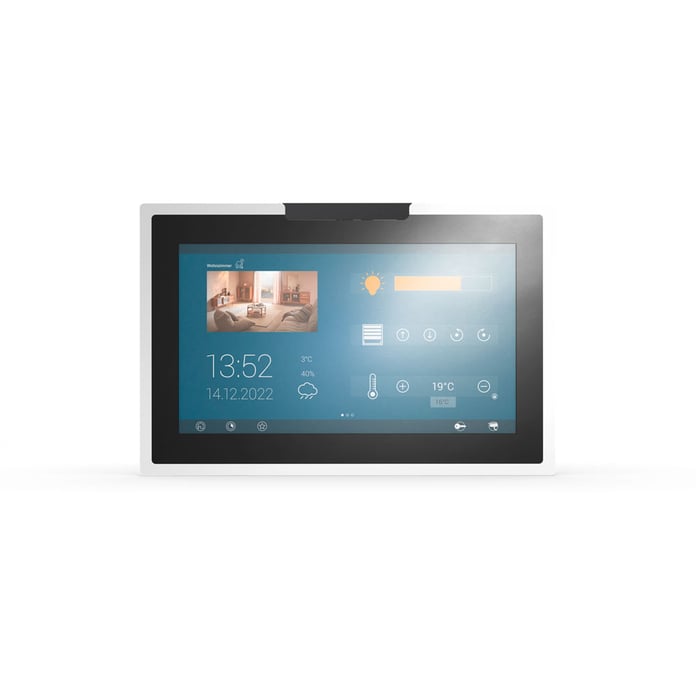

The Edition5 Touch Panel is a modern visualization and control solution that impresses with its technical sophistication and timelessly elegant design. The precision-crafted multi-touch glass front creates a stylish ambience and can be flexibly combined with a wide variety of interior design styles.

Our latest generation impresses with the understated and transparent outer glass frame.

This, coupled with a hands-free microphone and two large active speakers, creates a pleasant multimedia feeling.

Our Edition5 is ideal as a central hub for media control, door intercom, and video communication throughout the house. This touch panel can be surface-mounted or flush-mounted.

Technical data

  • Touch Panel PC for wall mounting
    and onwall mounting (AP)
  • TFT-LCD 18,5″ Display
  • optionally also as display (TD) available
  • excellent haptic with glass multitouch
  • optional reception of IP packets possible
  • speaker, microphone
  • working temperature: 0 up to 40°C
  • storage temperature: -20 up to 60°C
    relative humidity: up to max. 80%, not condensing
  • power input: 110 – 230VAC / 12VDC
  • weight: 5 kg

Order info

Display Projective Capacitive Multitouch
PC18/-AP: 18,5″ TFT-LCD 1920 x 1080
Design Cover glass black transparent, insert black
Cover glass white transparent, insert natural

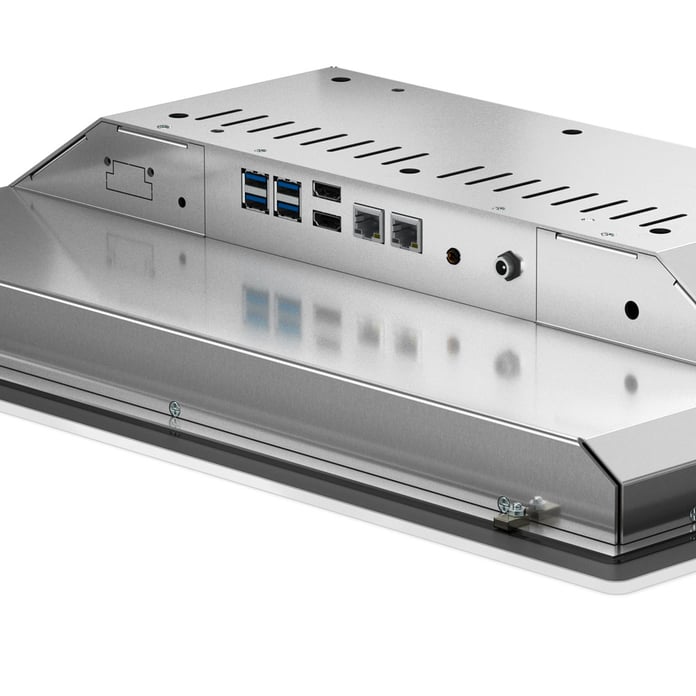

Equipment Intel Celeron J6412 CPU, Intel UHD Grafik, fanless, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 8GB DDR3, 128GB SSD, speaker, microphone, Windows 10 IoT LTSC 2021, with pre-installed TecTool Professional
Optional: Intel i5 1135G7 CPU, Intel Iris Grafik, fanless, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 1x COM Port, 16GB DDR3, Windows 11 IoT LTSC 2024, with pre-installed TecTool Professional

Power consumption

Operating status Last (P in W) Standby (P in W)
TD18 20 0.5
PC18 (Celeron J6412 | Intel i5) 35 5

Additional equipment

Operating system Linux

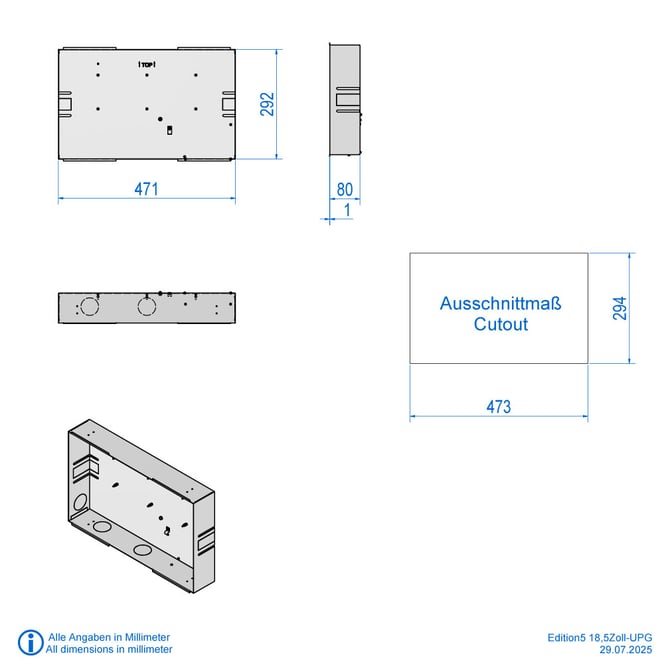

Mounting UPG - Built-in box
APG - Housing for on wall installation for mounting on VESA 100x200
(VESA mount not included)

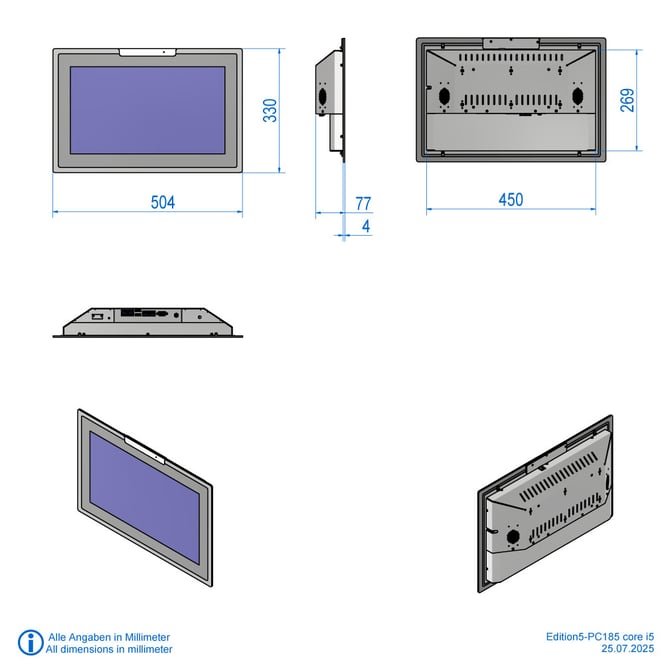

Technical drawing
