Touch-Panel F16A

Touch Panel F16A

  • UL certified
  • rugged system for panel mounting
  • front frame in aluminum with plane continuous glass front and capacitive glass touch, optical bonding
  • also available with extended temperature range
  • with pre-installed Webbrowser from scalable modular system

The slim and robust touch panel F16A scores with its continuous glass front in a material mix with anodized aluminum.
The system can be supplied with an extended temperature range of -20°C to 70°C. A status LED with operating status indication is integrated behind the glass on the front side. AS variants are PC-based systems, Android or pure displays available. Alternatively, Yocto from the Linux family is available as part of the scalable modular system.

icons_UL_20x20

Request now Download Datasheet

Variants

F16A-PC (Windows, Linux Touch Panel) windows_logo_60x60px Linux_pinguin_60x69px

The touch panel PC is suitable wherever powerful applications are to be used under Windows or Linux. Since there are no moving parts such as fans and HDD, the PC is completely maintenance free and designed for continuous operation 24/7/365.


F16A-VI (Android Touch Panel) android_robot_60x68px   Software-Suite-_Pack_1000x1000_fafafa

In addition to the PC version, you can use this system with Android operating system. The most common applications can be found in the classic HMI area with user interfaces and visualizations. Alternatively with Yocto as part of the scalable modular system.


F16A-PX (Android Touch Panel - UL Certified) android_robot_60x68px  icons_UL_20x20

The F16A-PX is equipped with a HD display and can be used at temperatures between -20°C and 70°C.

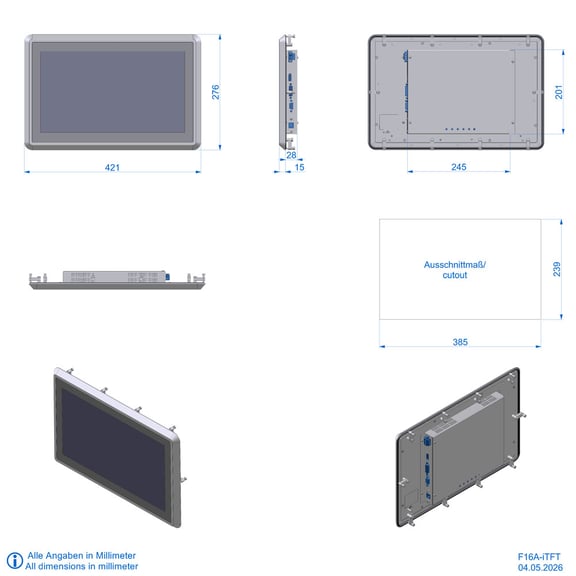

F16A-iTFT (Industrial Monitor

The F16A-iTFT industrial monitor can be used as remote solution with an IPC.

Product information at a glance

Technical data

  • touch panel for panel mounting
  • 15.6“ LED-TFT,
    F16A-VI / F16A-PC / F16A-iTFT: Full HD 1920 x 1080, 400 cd/m²
    F16A-PX: HD 1366 x 768, 400 cd/m²
  • capacitive multitouch (PCT)
  • Optical bonding ensures a sharp and brilliant display image, low reflections and an excellent reading angle
  • material mix with anodized  aluminum
  • fanless
  • protection class, front: IP65, back: IP20
  • individual technical equipment on request
  • F16A-XI / F16A-PC / F16A-iTFT:
    working temperature: 0 up to 50°C
    storage temperature: 0 up to +70°C
    relative humidity: 10 to 90%, not condensing
    power supply: 24 VDC
  • F16A-PX:
    working temperature: -20 up to 70°C
    storage temperature:  -20 up to +70°C
    relative humidity: 0 to 95%, not condensing
  • power supply:
    F16A-PC / F16A-PX / F16A-iTFT: 24 VDC
    F16A-VI: 24 VDC und PoE+ ​​​​IEEE Std 802.3at (Class 4)
  • weight: 4 kg

Order info

F16A-PC

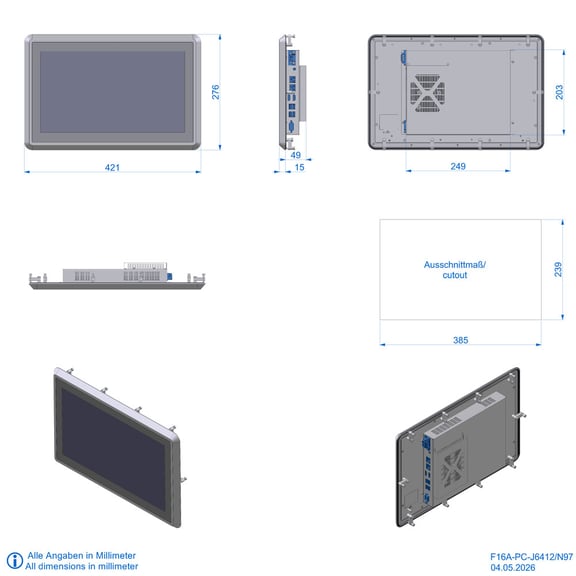

Panel PC, 16" touch screen, Board 3.5“ SBC, Intel® Celeron® J6412
CPU (4x 2-2.6 GHz), Fanless, Intel UHD Grafik, 8GB RAM, 128GB SSD, 2x HDMI, 2x RJ45 LAN, 4x USB3.2 (Gen1)

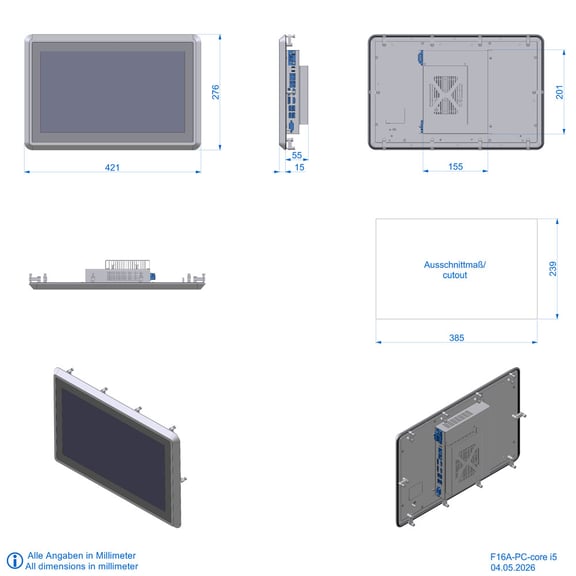

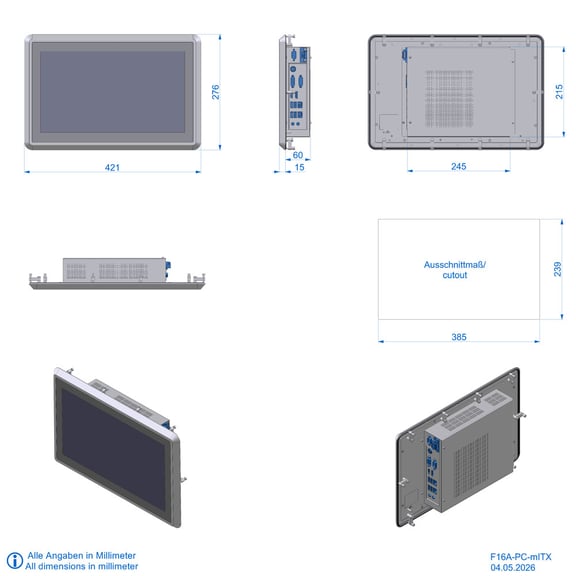

Optional: Board 3.5" SBC, fanless, Intel® Core™ i5-1135G7 CPU  or  ​​​Board Mini-ITX with fan

F16A-VI

Android-Panel, 22" Touch, Embedded CPU Board, Rockchip RK3399 dual core Cortex A72+ quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000, PoE+

F16A-PX
(UL Certified)

Android-Panel, Embedded CPU Board PX, Rockchip PX30 Quad-Core CPU 1.5 GHz, 2GB DDR3 SDRAM, 8GB eMMC storage, Status-LED, Android 9 (Pie)

F16A-iTFT

Industrial monitor, 22" Touch
Interfaces: DVI-D, DisplayPort, VGA

Options

RS-485 interface, second LAN interface - RJ45 or ix Industrial®, WiFi (Bluetooth), KNX, front stainless steel V2A, AutomationBrowser App for Android and MicroBrowser APP for Android Power supply: external plug-in power supply 230 VAC, tci WebWizard, eccentric technology for quick mounting

Customized

For other configurations please ask our system consultants

Operating systems

Windows 10 IoT LTSC 2021, others on request
Debian 10 LTS, Android 9
Yocto (Linux) as part of the scalable modular system
