Touch Panel F16T
- rugged design for mounting arm
- chassis made of anodized aluminum, all around IP65
- also available for panel mounting or as outdoor system

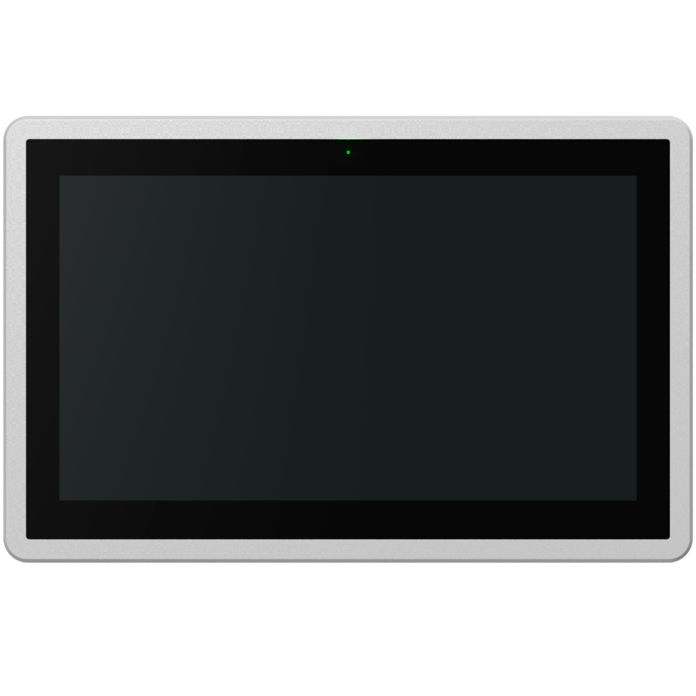

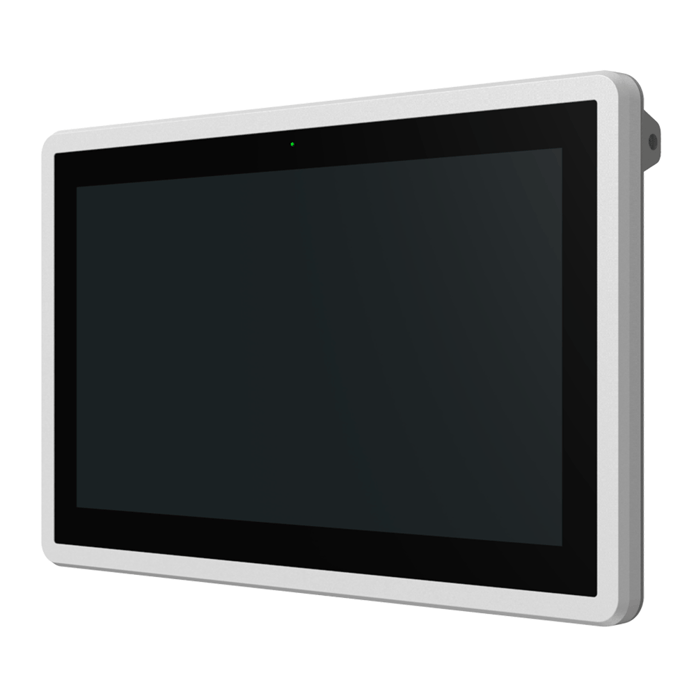

The slim and robust touch panel F16T is fully enclosed and prepared for mounting arm installation. The continuous glass front in a material mix with anodized aluminum offers reliable protection in industrial use.A status LED with operating status display is integrated behind the glass at the front.

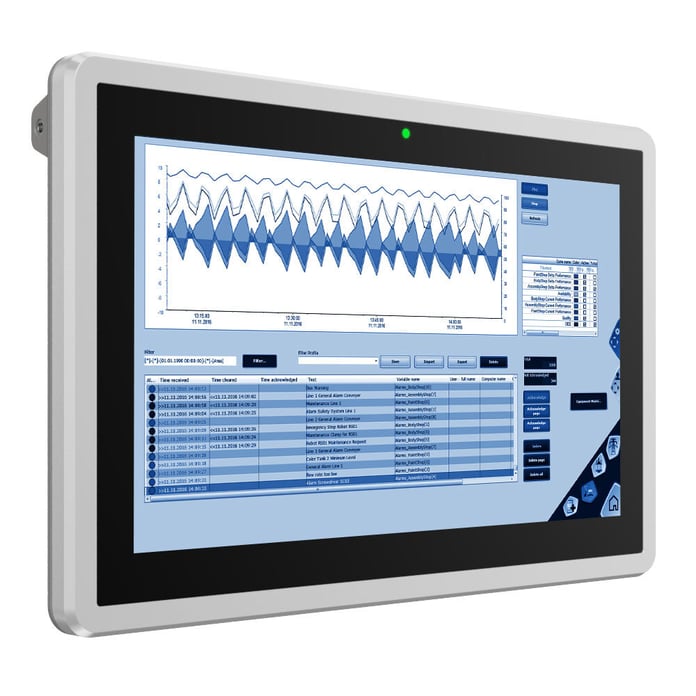

The F-Series touch panels serve as the ideal platform for your web-based applications—whether for HMI purposes or visualization.
OE/Yocto (Linux) and Windows 11 are available as operating systems.
Optionally available for Control Panel Mounting or as an Outdoor Panel.
Variants
F16T-VI (Android Touch Panel)
The panel can be used in classical HMI areas, for example for operation and visualization.
The F16T-XI is suitable for a temperature range from 0° to +50°C.
F19T-PC (Windows Touchpanel)
The touch panel PC is suitable for any environment where high-performance Windows-based applications are to be deployed.
F16T-PX (Android Touch Panel)
The F16T-PX is equipped with a HD display and can be used at temperatures between -20°C and +70°C.
F16T-PX-Plus (Android Touch Panel - UL Certified)
The F16T-PX-Plus is equipped like the F16T-PX and can be used at temperatures between -40°C and +70°C. A sun protection hood and the internal heating with dew point monitor allow use in the outdoor area.
Applications areas
- Machinery and Plant Engineering
- Process Visualization
- Measurement and Testing Technology
- Operator Panels for Manufacturing Cells
- Embedded HMI for Decentralized Controls and Gateways
- Edge Devices / IoT Nodes with Local Visualization
- Packaging and Conveyor Technology
- Energy and Environmental Technology (e.g., Water Treatment, Power Distribution)
- Building Infrastructure
Highlights
- HTML5: Seamless integration of modern web applications—no programming skills required
- Commissioning Wizard: Guided setup for fast and simple integration
- The scalable modular system enables over-the-air updates and offers a secure cloud-on-premise solution for your fleet management
- IP65-rated on all sides
- VESA75-compatible: Direct mounting on support arm systems
- Windows 11 IoT
Technical data
- touch panel for mounting arm
- 15.6“ LED-TFT,
- F16T-VI / F16T-PC: Full HD 1920 x 1080, 400 cd/m²
- F16T-PX: HD 1366 x 768, 400 cd/m²
- capacitive multitouch (PCT)
- material mix with anodized aluminum
- fanless
- protection class IP65 all around
- VESA 75x75
- IP69K protected connection fields for USB, LAN and power supply (M12)
- individual technical equipment on request
- F16T-VI / F16T-PC:
working temperature: 0 up to +50°C
storage temperature: 0 up to +70°C
relative humidity: 10 to 90%, not condensing
power supply: 24 VDC and PoE+
IEEE Std 802.3at (Class 4), 1.0 A - F16T-PX:
working temperature: -20 up to +70°C
storage temperature: -40 up to +70°C
elative humidity: 0 to 100%, not condensing
power supply: 24 VDC, 1.0 A - weight: 4,5 kg
Order info
| F16T-VI | Embedded HMI Touch Panel, 16" Touch, Embedded CPU Board, Rockchip RK3399 dual core Cortex A72 + quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000, PoE+, OE/Yocto |
|---|---|
| F16T-PC | Panel-PC, Touchpanel, 16" Touch, Board 3.5" SBC, Intel® N97 CPU (Alder Lake), 4x max. 3.6GHz, 2x SO-DIMM DDR5, 4800MHz max. 16GB, Dual 2.5GbE LAN, Intel UHD Grafik, TPM2.0 OnBoard, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 2x USB 2.0, Audio, 1x COM (RS-232/422/485) |
| F16T-PX (UL Certified) |
Embedded HMI Touch Panel, Embedded CPU Board PX, Rockchip PX30 Quad-Core CPU 1.5 GHz, 2GB DDR3 SDRAM, 8GB eMMC storage |
| Options | Cable protection for LAN cables with RJ45 plug for crimping, AutomationBrowser App für Android and MicroBrowser APP for Android |
| Customized | For other configurations please ask our system consultants |
| Operating systems |
Windows 11 IoT LTSC 2024, andere auf Anfrage |
Technical drawing
