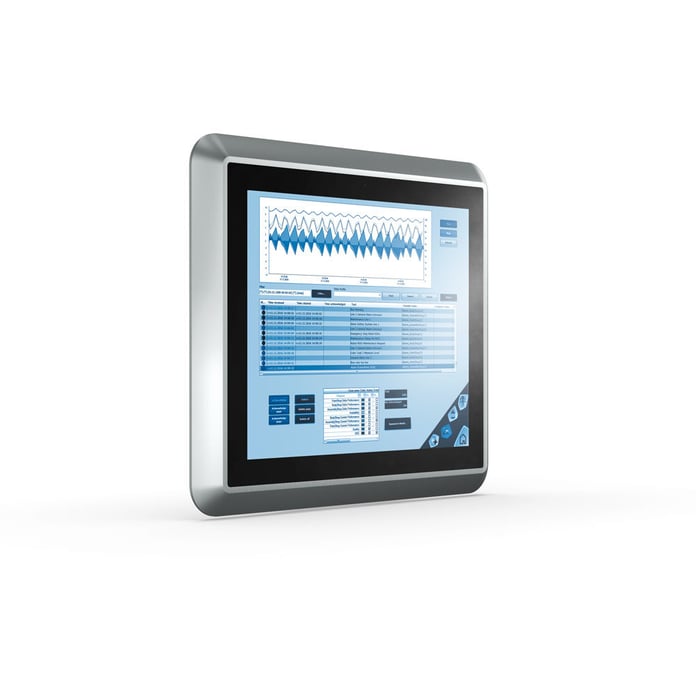

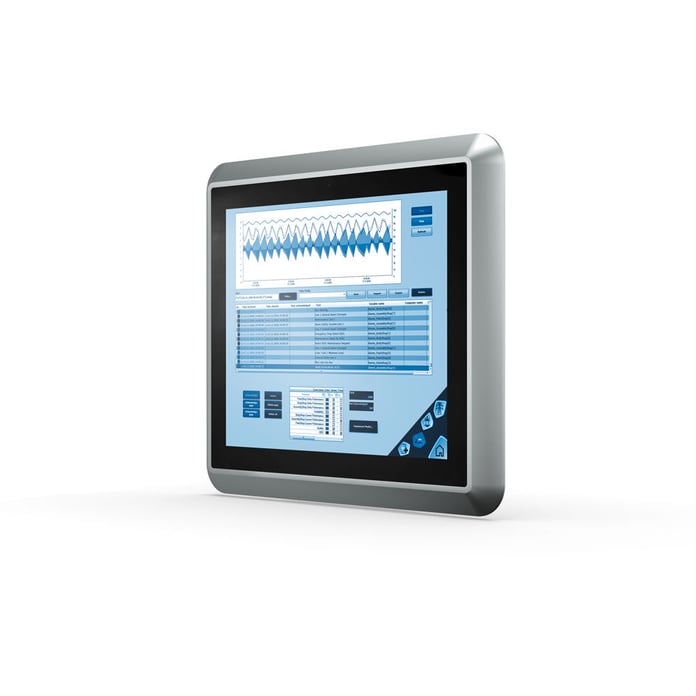

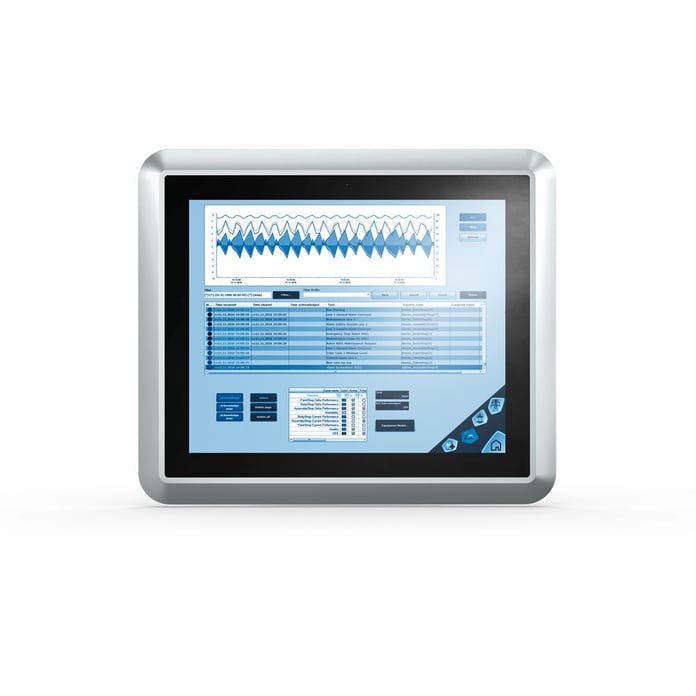

Touch Panel F19A

flat and seamless real glass front, optical bonding
quick and easy mounting
robust wireless system design
tci system design for extra long availability

The F19A, the newest member of the F series from tci GmbH, will be presented at this year's SPS trade fair. The robust 19-inch touch panel offers a generous display area in classic resolution and is ideal for industrial control and visualization tasks.

With security by design, hardened Linux kernel and Yocto framework, the F19A ensures the highest level of cyber security. A read-only root file system and a secure bootloader that only accepts signed images ensure system integrity.

In addition to the Linux-based Yocto system, scalable PC options from Mini-ITX to Core-i are available, allowing the F19A to be flexibly adapted to different performance requirements. Cloud-based updates enable easy maintenance and always up-to-date security and software optimizations.

Thanks to hole compatibility with the G19A and A19 models, the F19A is versatile and combines flexibility, durability and high security standards for future-oriented industrial applications.

Learn more about scalable modular system now!

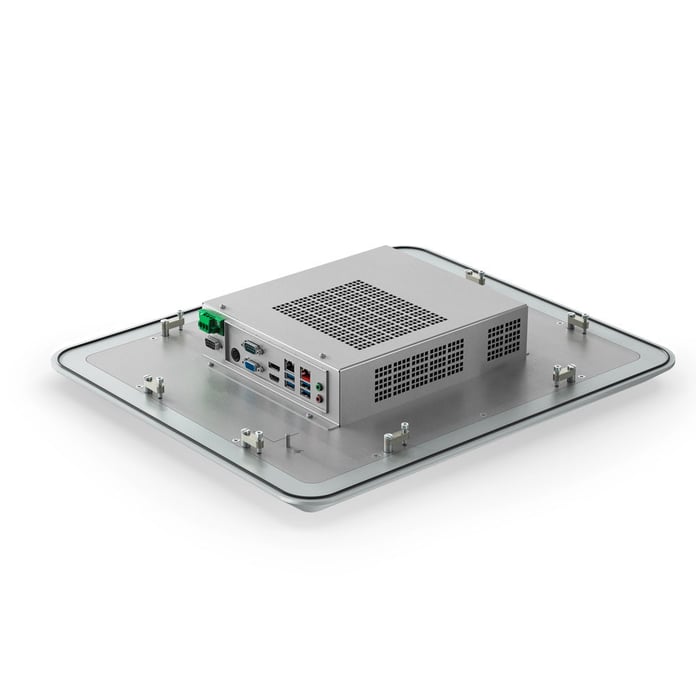

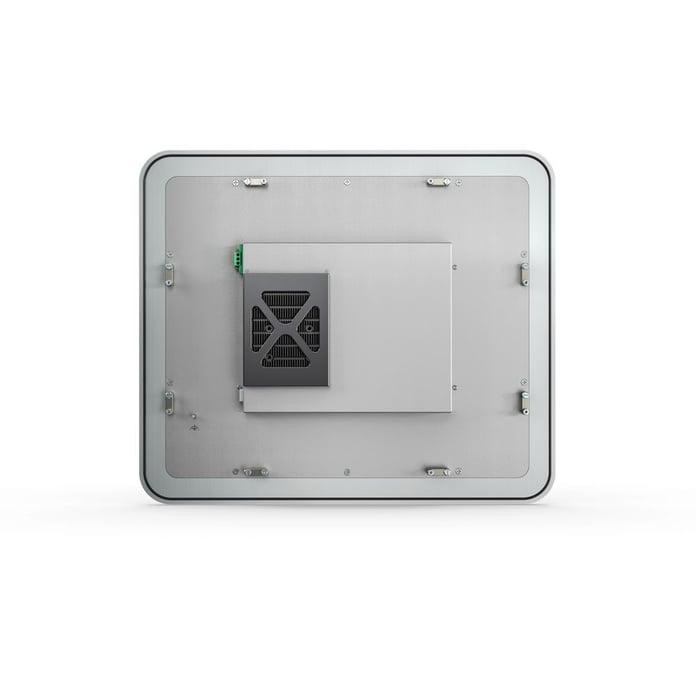

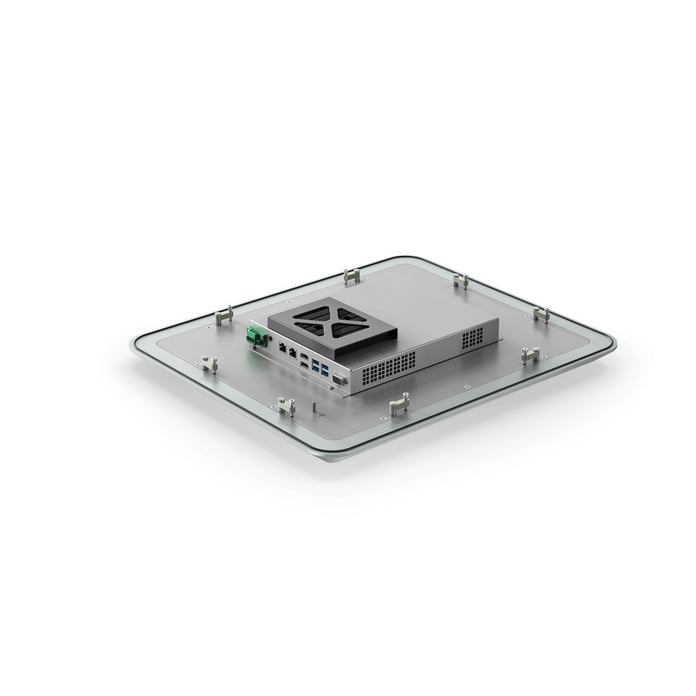

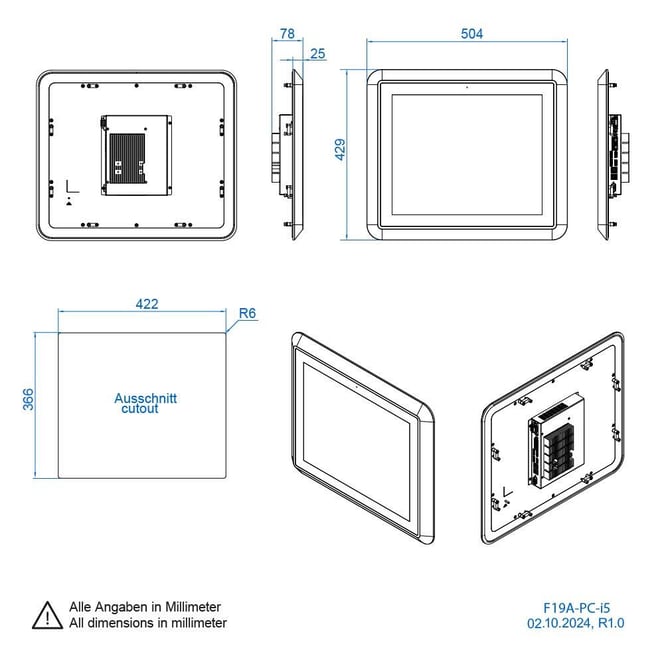

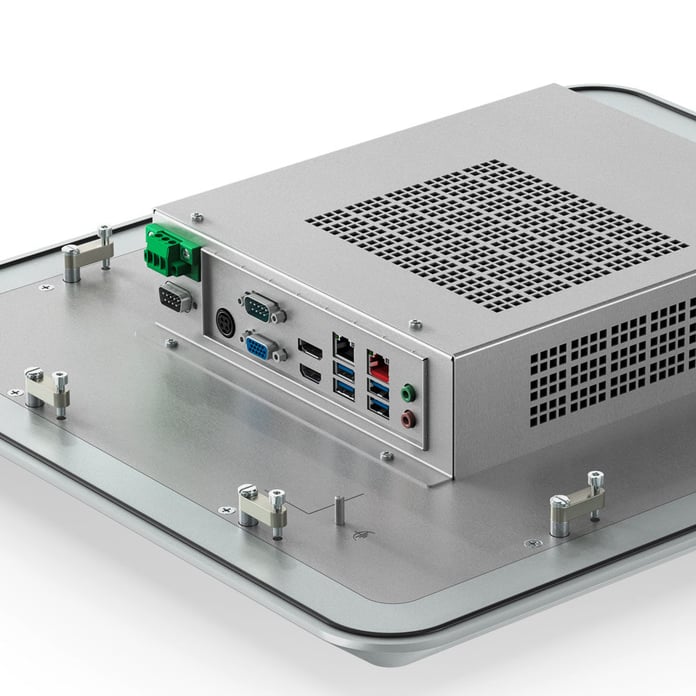

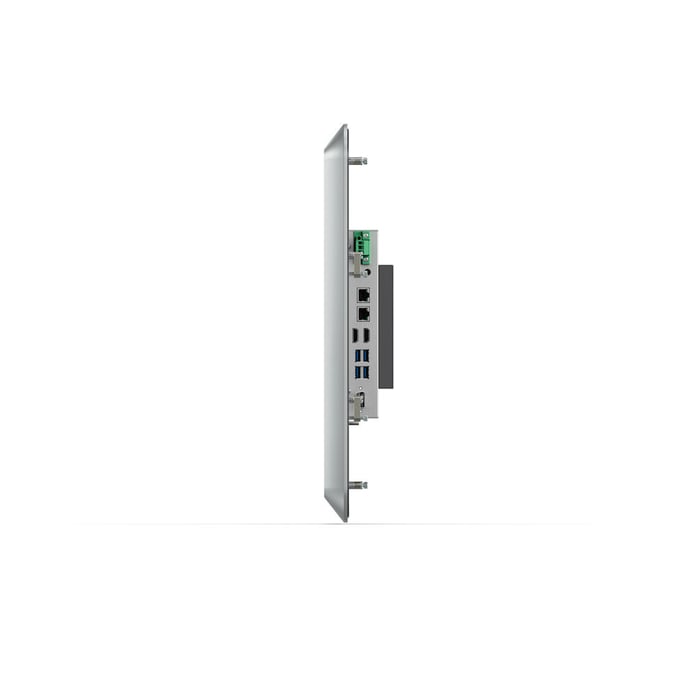

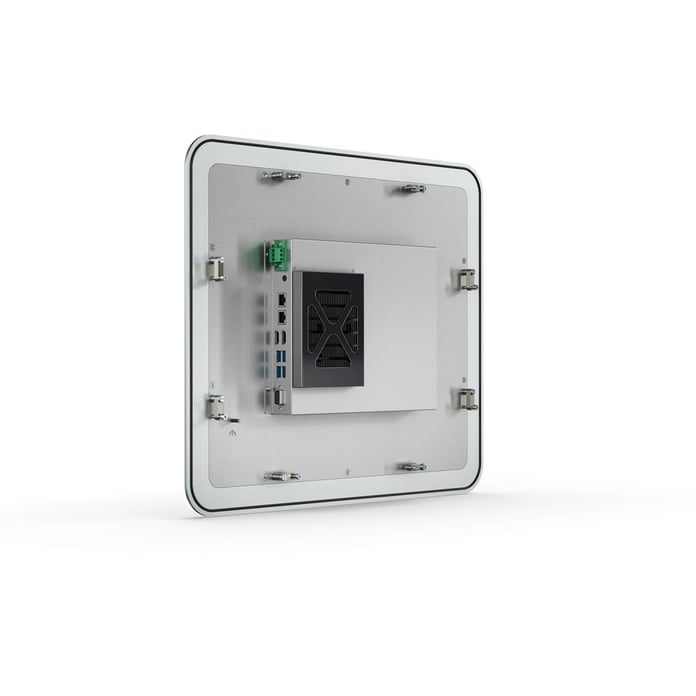

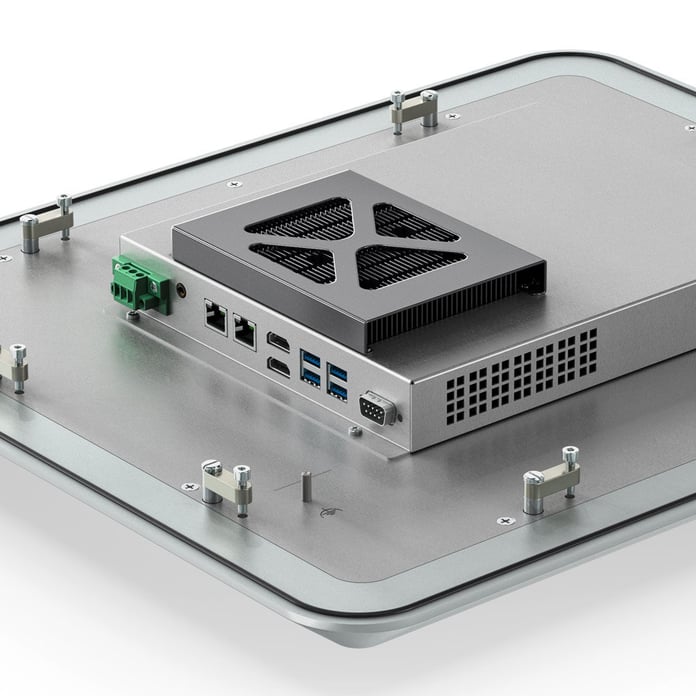

19 inch touch panel eccentric mounting — F19A-PC-Core i5 Connection panel

Variants

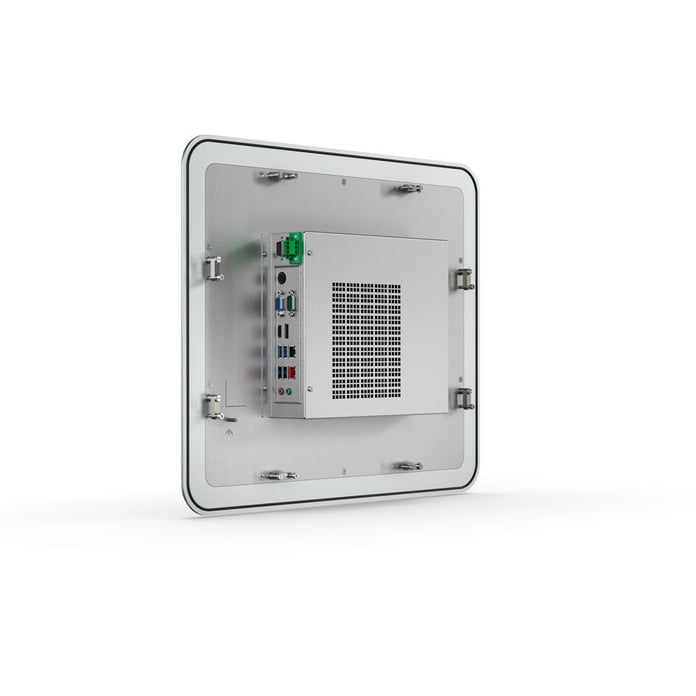

F19A-PC (Windows, Linux Touchpanel)

The touch panel PC is suitable wherever powerful applications are to be used under Windows or Linux. Since there are no moving parts such as fans and HDD, the PC is completely maintenance free and designed for continuous operation 24/7/365.

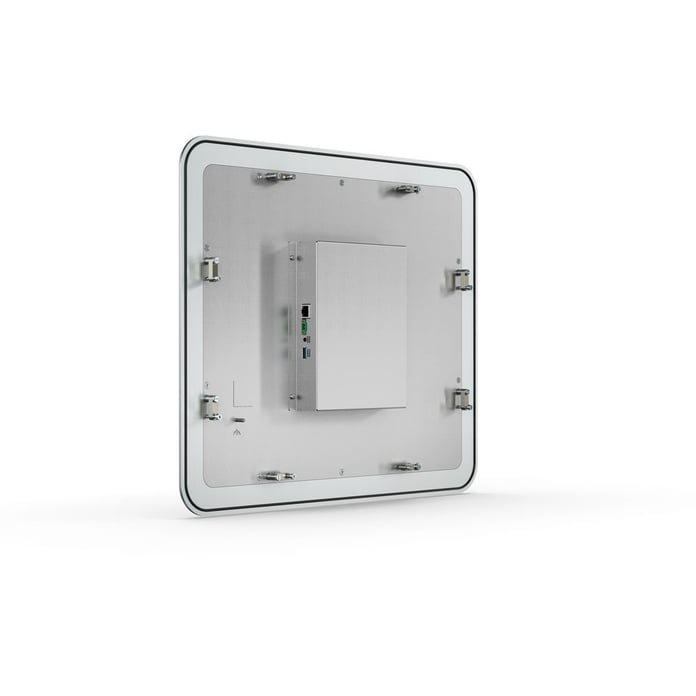

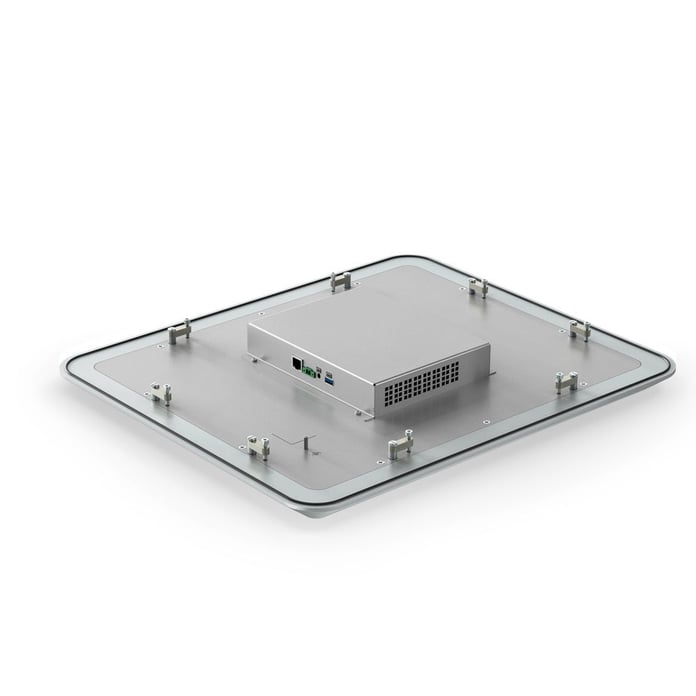

F19A-VI (Linux Touchpanel)

The embedded HMI touch panel with OE/Yocto (Linux) offers many security features and an installation wizard.

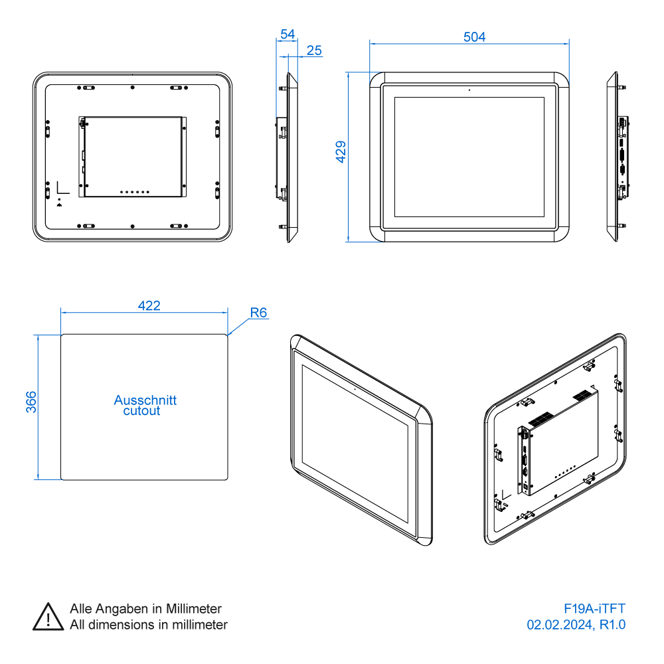

F19A-iTFT (Industrial Monitor)

The F19-iTFT industrial monitor can be used as remote solution with an IPC.

Technical data

touch panel for panel mounting
19" LED-TFT, 1280 x 1024, 350 cd/m²
aluminum front IP65
Optical bonding ensures a sharp and brilliant display image, low reflections and an excellent reading angle
working temperature: 0 up to 50°C
storage temperature: 0 up to 70°C
relative humidity:

operating: 10 bis 80% not condensing
storage / Transportation: 10 bis 90%, not condensing
power supply:

F19A-PC / F19A-iTFT: 24 VDC

F19A-VI:

24 VDC, 1.5 A and PoE+
IEEE Std 802.3at (class 4)

Order info

F19A-PC	Panel-PC, 19" Touch, Board 3.5“ SBC, Intel® Celeron® J6412 CPU (4x 2-2.6 GHz), fanless, Dual Gigabit LAN, Intel UHD Grafik, 8GB RAM, 128GB SSD, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 1x COM (RS-232/422/485) Optional: Board 3.5" SBC, fanlenn, Intel® Core™ i5-1135G7 CPU / Board Mini-ITX (with fan)
F19A-VI	Embedded HMI Touchpanel, 19" Touch, CPU Board, Rockchip RK3399 dual core Cortex A72 + quad-core Cortex A53, 2GB RAM, 32GB eMMC storage, Ethernet 100/1000, PoE+, OE/Yocto
F19A-iTFT	Industrial monitor, 19" Touch Interfaces: DVI-D, DisplayPort, VGA
Options	KNX-Module
Customized	For other configurations please ask oursystem consultants
Operating systems	Windows 10 IoT LTSC 2021, Windows 11 IoT LTSC 2024, others on request Debian 10 LTS OE/Yocto Android on request
