nexo10

The Open Room Interface

  • fits into standard flush-mounted box
  • based on Open Embedded Yocto
  • individual user interface
Request now Download Datasheet

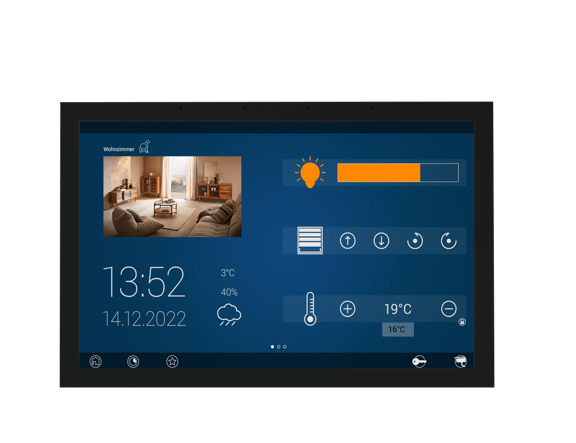

Web panel with a 10-inch display, a borderless, all-black touchscreen. The screen supports adaptive brightness adjustment and offers connections for Ethernet, WLAN, RS485, microphone, and speaker.

nexo stands for openness, integration capability, and long-term security – designed for professional building automation projects and system integrators.

Learn more about scalable modular system now!

Technical data

  • Webpanel for building automation
  • 10“ LED-TFT,  800 x 1280
  • embedded VI Board
  • high-quality metal frame, ultra-thin design

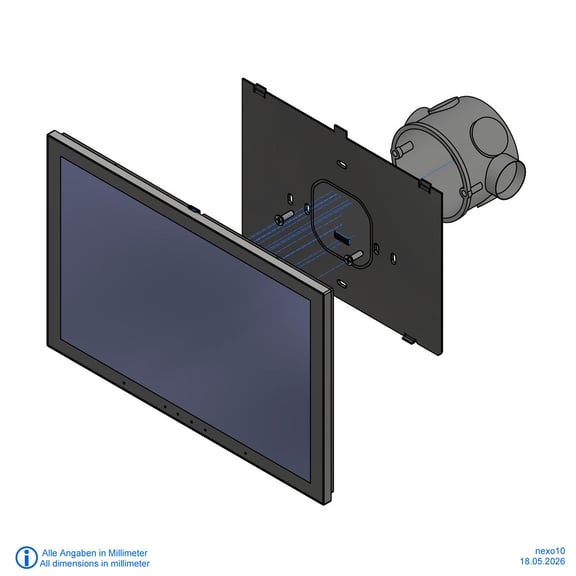

  • direct mounting in 68mm cavity wall box
  • IP20
  • Brightness sensor and proximity sensor
  • supports WLAN and LAN for network connections
  • working temperature: 0 up to 40°C
  • storage temperature: -10 up to 60°C
    relative humidity: 90%, not condensing
  • power input: 24 VDC or PoE+
     IEEE Std 802.3at (Class 4)

Order info

nexo10 Webpanel with 10" capacitive touchscreen, CPU Board Rockchip RK3566 quad-core Cortex A55, 2GB RAM, 32GB eMMC storager, brightness and proximity sensor, speaker, microphone, ethernet RJ45 10/100Mbit, 1x USB-C, Phoenix connectors,  OE/Yocto
Design: black

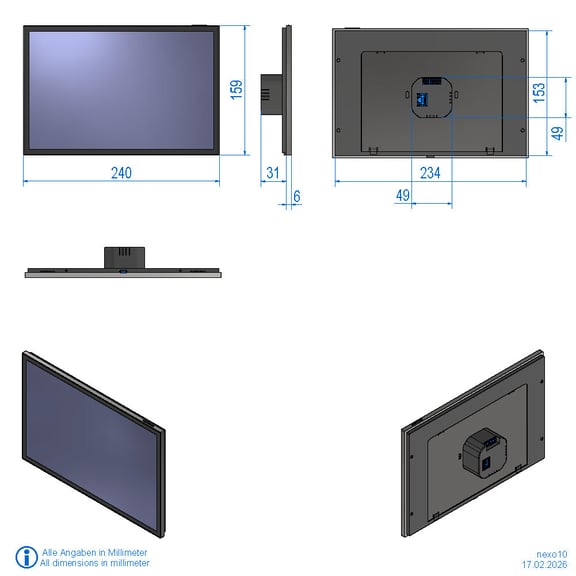

Technical drawing
