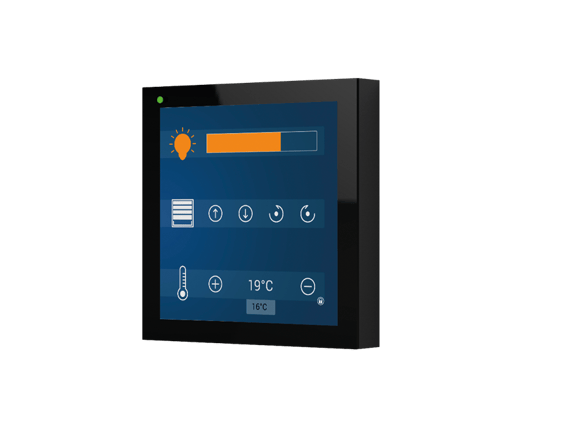

nexo4
The Open Room Interface
- fits into standard flush-mounted box
- with temperature sensor
- individual user interface
Wherever a standard switch fits, it also fits nexo4. This gives you a control element that not only impresses with its elegant design, but also impresses with its comprehensive functionality.
The touch surface with a 4-inch diagonal can also be operated without contact using gestures. It can installed in a standard built-in box. Thanks to the integrated temperature sensor, solo saves a separate room thermostat.
With nexo4 you can implement customized operating concepts for your customers. Essential functions in the room, such as switching the light on and off, controlling the shading or specifying the room temperature, are directly available with nexo4.
For anything less you should not feel satisfied:
- elegant design with a frameless real glass front
- latest browser technology
- anti-theft installation
- brightness sensor to control the light intensity
- individual surface for an unmistakable design
Diverse application possibilities
- Smart Home
- house building
- hotels and conference rooms
- offices and trade
Technical data
-
Webpanel for building automation
-
4“ multitouch with continuous glass surface, 300cd / m², 720x720
-
embedded VI Board
-
IP20
-
1x Micro USB
-
temperature sensor and connection for temperature sensor

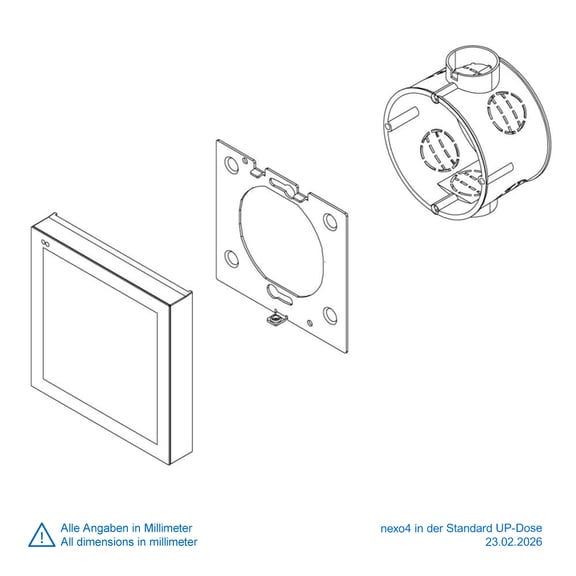

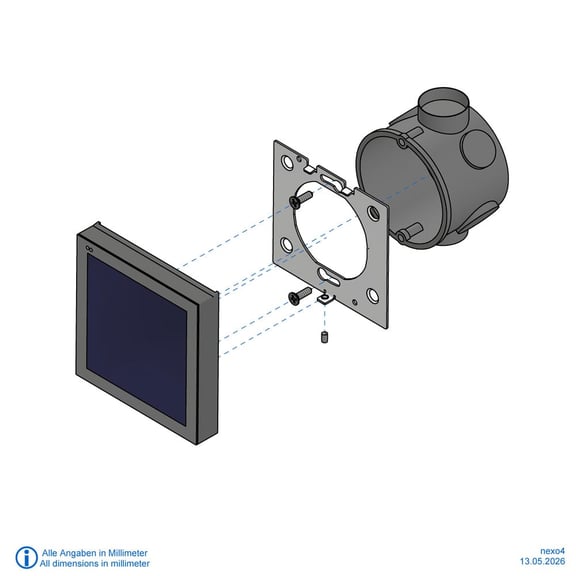

- direct mounting in 68mm cavity wall box
-
working temperature: 0 up to 35°C
-
storage temperature: -20 up to 70°Crelative humidity: 10 up to 80%, not condensing
-
power input: 24 VDC and PoE, 1.0 AIEEE Std 802.3af (Class 0)
Order info
| nexo4 | Webpanel with 4 "multi-touch , PCT touch, transparent window for brightness and proximity sensor, embedded Board Rockchip RK3288, Ethernet 10/100 with PoE, RS-485, OE/Yocto Design: schwarz |
|---|
