Touch Panel Edition3
Noble design and technical Perfection
- Exclusive touch PC, hand made
- Choose your bus system
- Simple one-man installation with Rapid mounting
- Many color variations and surfaces possible
Request now
Download Datasheet
A symbiosis of glass and aluminum
Our Edition3 presents itself as a high-quality visualization and control solution that impresses above all with its combination of elegant design and technical perfection. A precisely milled aluminum frame with a recessed glass front provides an optimal touch surface for the sensitive and powerful multi-touch interface.
For a high degree of exclusivity and uniqueness, we can also customize the frame upon request. Whether subtle or glamorous – with our Edition3, you can lend a wide variety of living spaces or office buildings a stylish ambience of unmistakable uniqueness.
The touch panel is also equipped with a microphone and active speakers, making it easy to connect to a door intercom or intercom system. We also offer adapter frames for flush-mounted sockets from various manufacturers for our flush-mounted touch PC, which can be flexibly integrated into any wall or cavity wall.
Variants

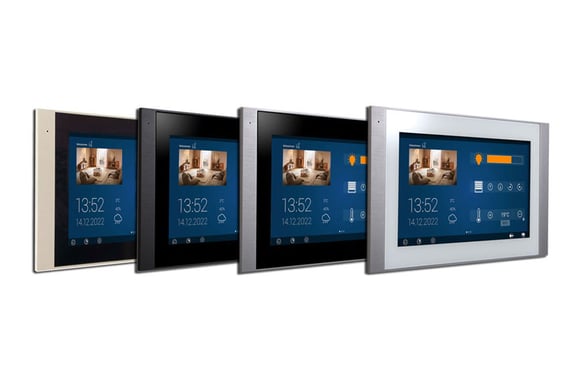

These pictures show the Edition3 in different design variants
Black cover glass / White lacquered frame, "Sentido" design
Black cover glass / Black anodized frame
Black cover glass / Natural anodized frame
Cover glass white / Frame anodized natural
Technical data
- Touch Panel PC for wall mounting
- TFT-LCD display, in sizes 10.1″, 15.6″, 21.5″ and 24″
- 16", 22" and 24" optionally also as display (TD) available
- elegant glass and aluminum surfaces
- excellent haptic with glass multitouch
-
many color variations and surfaces possible
- speaker, microphone
- working temperature: 0 up to 35°C
- storage temperature: -20 up to 60°C
relative humidity: up to max. 80%, not condensing - power input:
PC10: 12 - 24VDC
PC16 / PC22 / PC24: 110 – 240 VAC / 12VDC -
weight:PC10: 1,7 kg / PC16: 4,5 kg /
PC22: 5,7 kg / PC24: 7,6 kg
Order info
| Display | Projective Capacitive Multitouch in different display resolutions PC12: 10,1″ TFT-LCD 1280 x 800 PC16: 15,6″ TFT-LCD 1920 x 1080 PC22: 21,5″ TFT-LCD 1920 x 1080 PC24: 24″ TFT-LCD 1920 x 1200 |
|---|---|
| Design | PC10 / PC22 / PC24 Cover glass black, frame anodized natural/ Cover glass black, frame anodized black / Cover glass black, frame anodized white PC16: Cover glass black, frame anodized natural / Cover glass black, frame anodized black / Cover glass black / frame white lacquered design "Sentido" Cover glass white, frame anodized natural |
| Equipment | PC10: Intel Celeron N3350 CPU, Intel HD Graphics, fanless, 1x HDMI, 1x RJ45 LAN, 2x USB3.0, 8GB DDR3, 128GB SSD, speakers, microphone, Windows 10 IoT LTSC 2021, with pre-installed TecTool Professional PC16 / PC22 / PC24: Intel Celeron J6412 CPU, Intel UHD Grafik, fanless, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 8GB DDR3, 128GB SSD, speakers, microphone, Windows 10 IoT LTSC 2021, with pre-installed TecTool Professional Optional: Intel i5 1135G7 CPU, Intel Iris Grafik, fanless, 2x HDMI, 2x RJ45 LAN, 4x USB3.2, 1x COM Port, 16GB DDR3, Windows 11 IoT LTSC 2024, with pre-installed TecTool Professional |
Power consumption
| Operating status | Last (P in W) | Standby (P in W) |
|---|---|---|
| PC10 | 12 | 4 |
| TD16 | 15 | 0.5 |
| PC16 (Celeron J6412 | Intel i5) | 26 /45 | 5 | 3 |
| TD22 | 30 | 0,5 |
| PC22 (Celeron J6412 | Intel i5) | 42 | 53 | 5 | 3 |
| TD24 | 42 | 0.5 |
| PC24 (Celeron J6412 | Intel i5) | 47 | 58 | - | 3 |
Additional equipment
| Operating systems | Linux | |
|---|---|---|
| Mounting | EPG - Built-in box for flush mounting (only 24") UPG - Built-in box UPG-BETON - Flush-mounted housing for concrete installation |
|
| NT-HUT-24VDC-60W | Power supply, 24V/60W, 2.5A, Meanwell HDR-60-24 DIN rail |

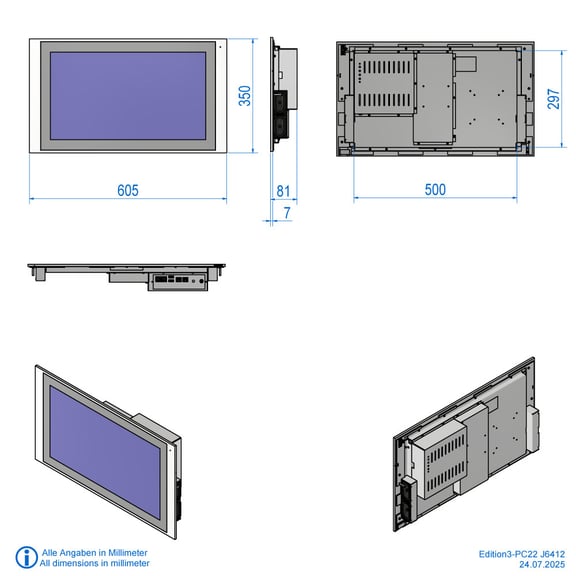

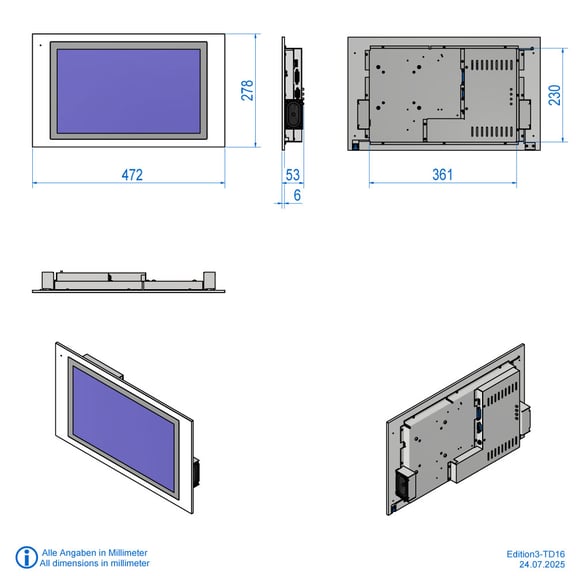

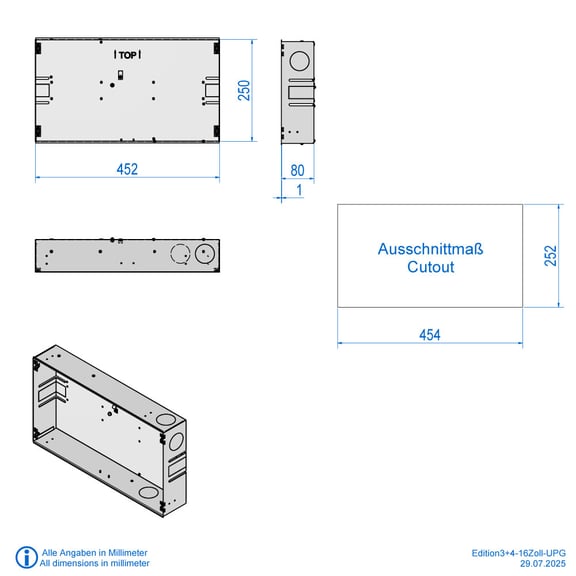

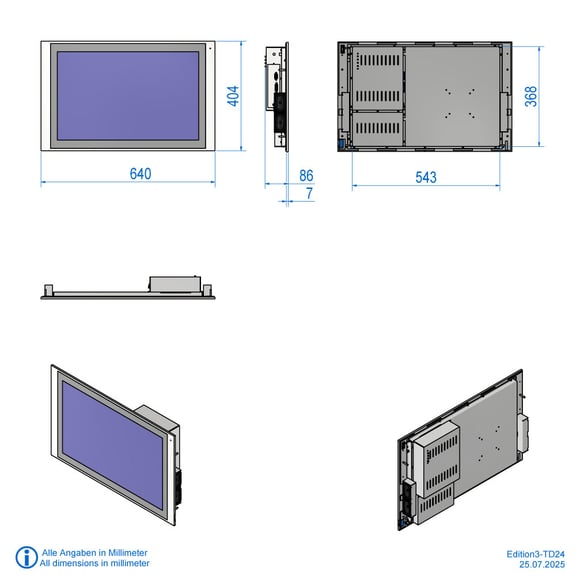

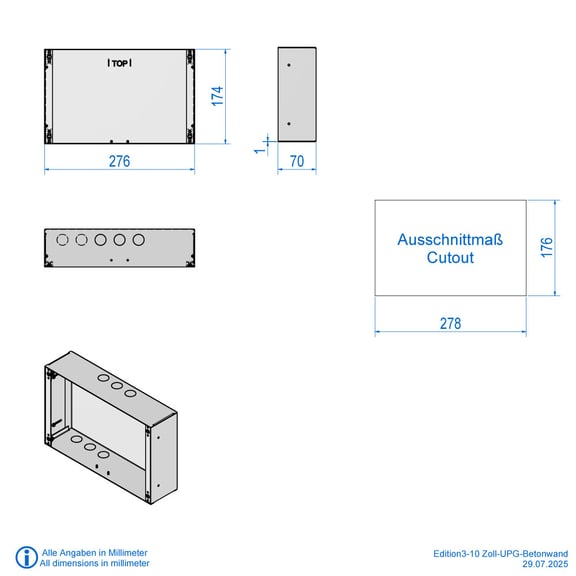

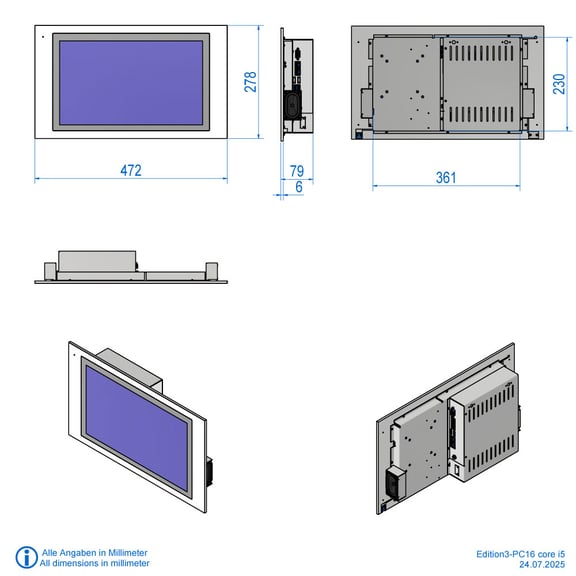

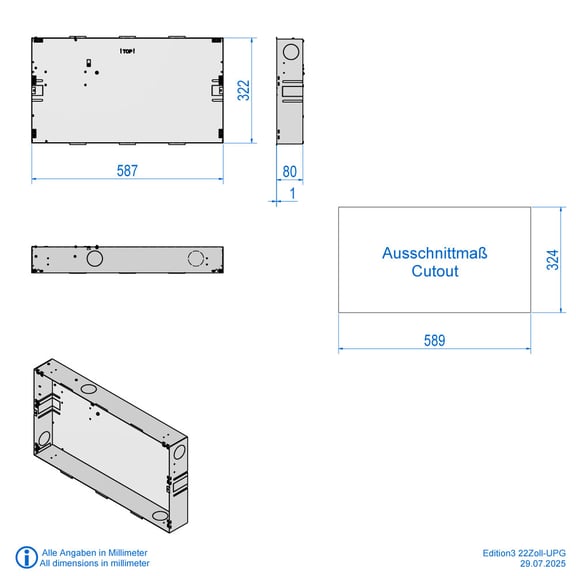

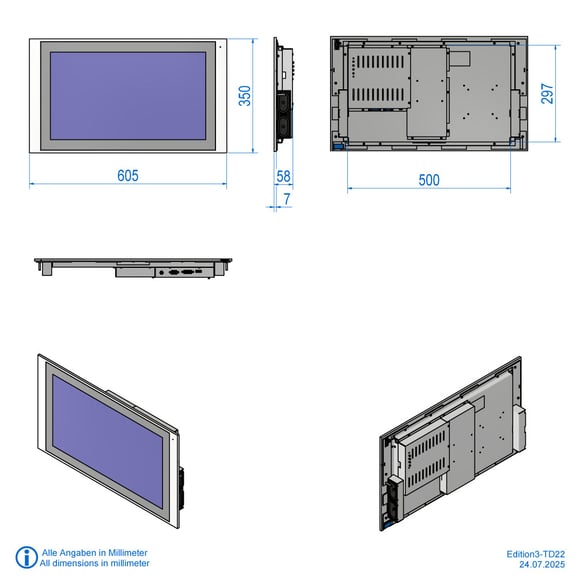

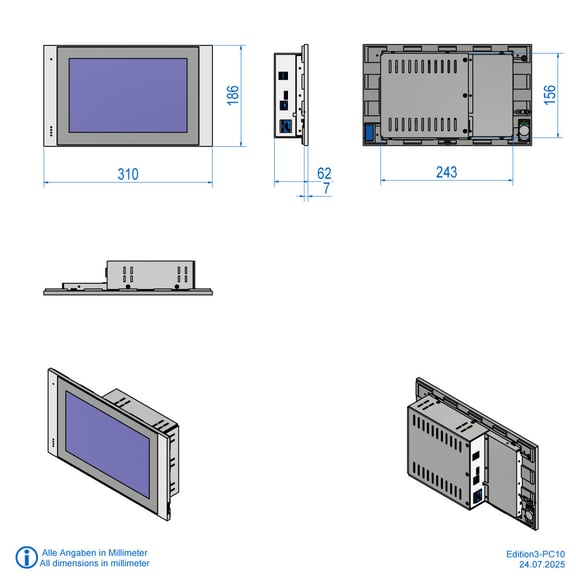

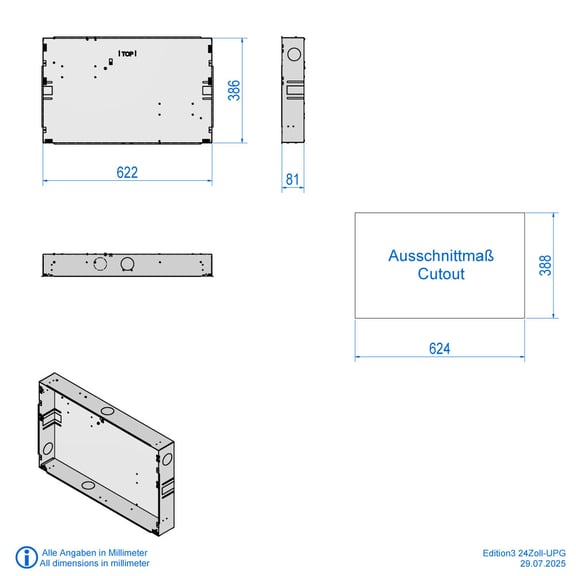

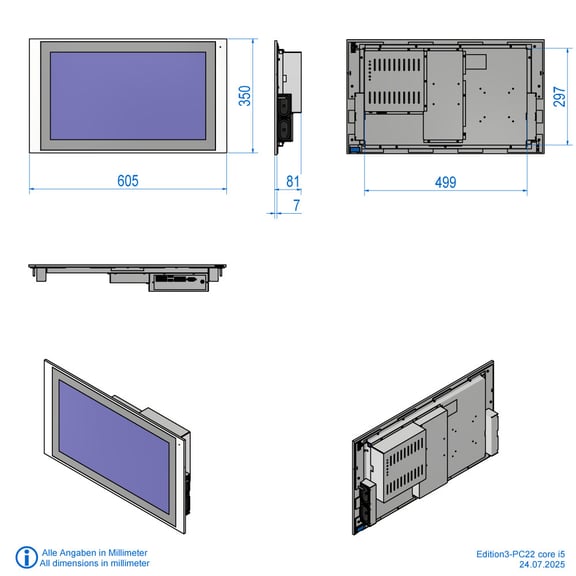

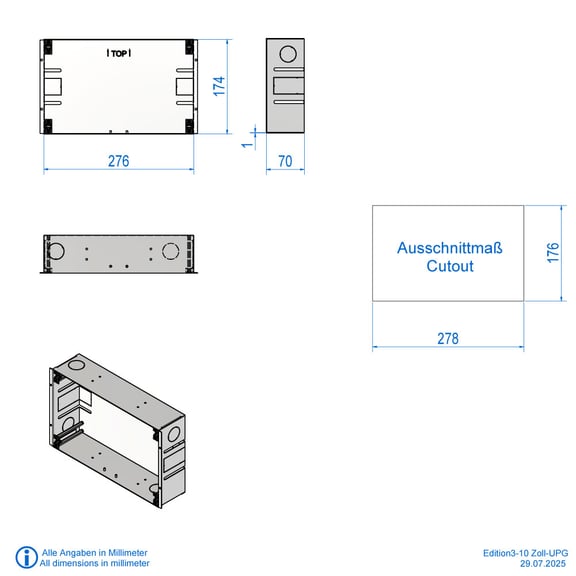

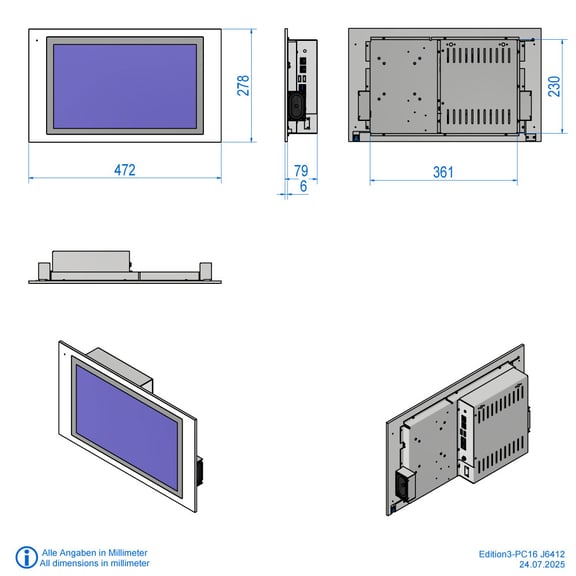

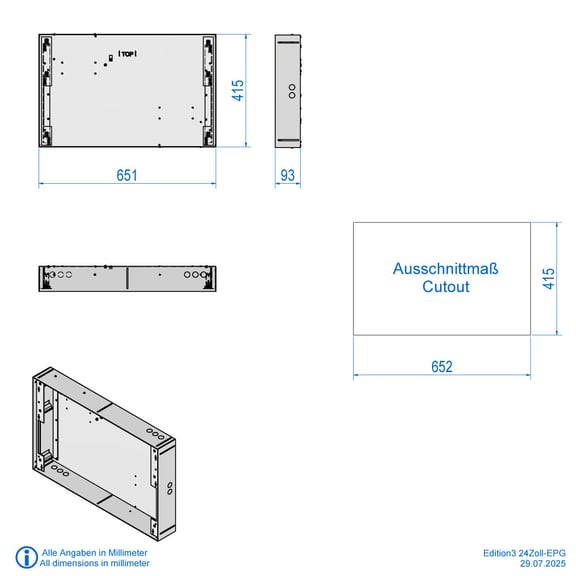

Technical drawing
