F16T Outdoor

Robust touch panel for mounting arm installation

  • outdoor or in the production environment
  • protection class IP65 all round
  • operating temperature -40 to +70°C
Header_H22ST_mobil

H-ST series

Touch panel for applications under extreme conditions

  • ideal for food, beverage and pharmaceutical applications
  • powder-coated housing
  • IP65 protection all round

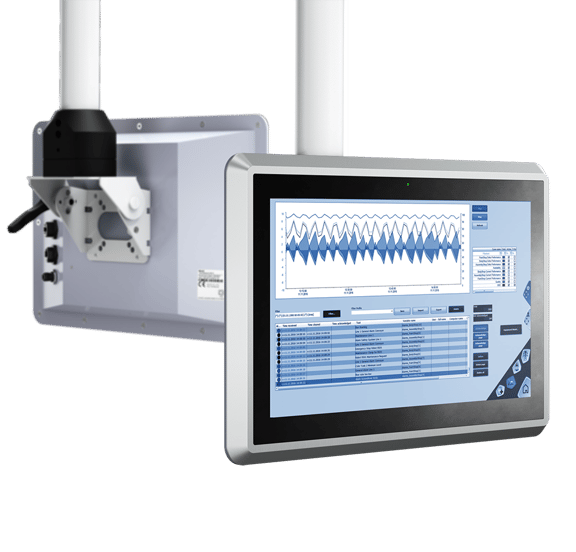

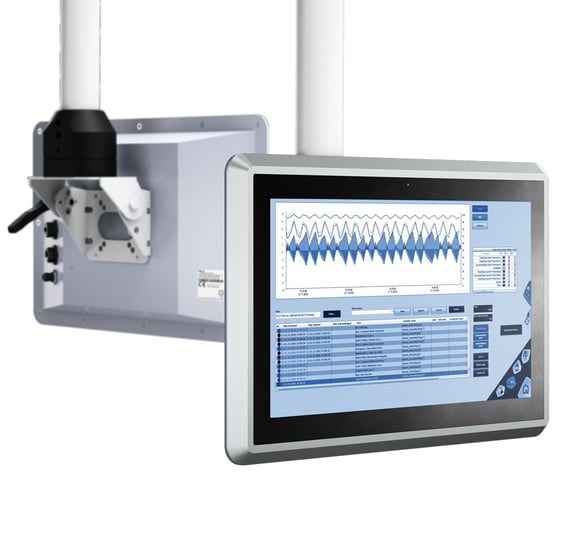

Touchpanel for mounting arm supprt

In the food, beverage and pharmaceutical industries, completely closed systems are the top priority. This is what tci has paid special attention to when designing the industrial computer for the support arm. The possible pollution is minimized by suitable surfaces - liquids can drain off at each place. For example H-systems without joints, edges and pores ensure the fulfilment of the strict specifications of DIN EN 1672-2. The operation is carried out by touch. The computing power of the Panel PCs for mounting arm mounting is scalable. Depending on the ambient conditions, the systems can be operated without a fan

  • completely closed, in various materials
  • from 7 inch touch up, 16:9 / 4:3
  • IP protection up to IP69k

Web-HMI and PLC operating panel

G07T and E10T

G07T_Detail_9
G07T_Detail_5
E10T-am-Tragarm_Montage
Produktbild_E10T_StudioSetup_02-Studio_perspektivisch_hinten_rechts

The G07T and E10T are designed as PLC operating terminals and for visualising control systems from a wide range of manufacturers with an integrated web server.

The G07T is equipped with a resistive touch. The fully enclosed plastic housing is particularly light, robust and certified for protection class IP65.

The E10T is specially designed for CoDeSys web visualisation. The integrated MicroBrowser ensures a lightning-fast system start and high performance during operation. The E series also offers all-round IP protection. Applications can be realised as web HMI and PLC operating panels with Android.

button_7Zollbutton_10zollbutton_Tragarm_ENbutton_touchbutton_ip65button_codesys30fanless

  Produkt type     Diagonal / aspect ratio Protection     Touch     Mounting Operating system
2016-G07T_Imagebild
Touch-Panel G07T
Web Panel,
PCL teminal
7 inch/16:9 all around IP65 resitiv touch Mounting arm support VESA 75x75

XS-Technology

Produktbild_E07A_links_freiTouch-Panel E10T Web Panel,
PCL teminal
10 inch/16:9 all around IP65 kapzitive multi touch (PCT) Mounting arm support VESA 75x75 Android with WebWizard,
XS-Technology



Android Touchpanel for industrial use

F16T

Produktbild_F16T_perspektivisch_mitSonnenschutz_1000px_mit-Inhalt
F16T-Rückseite_1000x1000

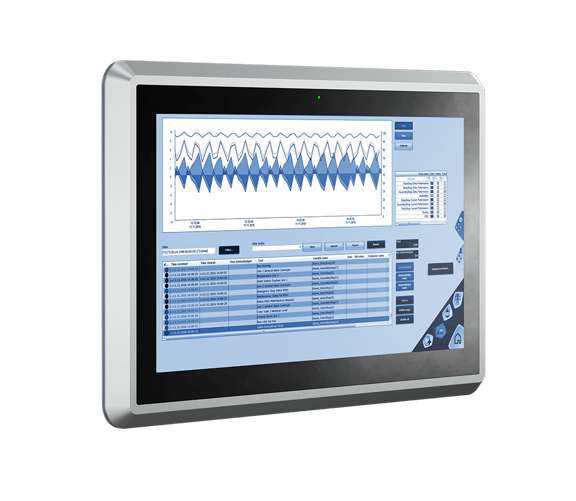

The slim and rugged F16T touch panel is fully enclosed and prepared for mounting arm installation. The continuous real glass front in a material mix with anodised aluminium offers reliable protection in industrial use and a status LED with operating status display is integrated behind the glass on the front.

Thanks to the Android operating system, the touch panels are the ideal basis for your web-based application as an HMI or for visualisation.

button_16Zollbutton_touchbutton_fanlessbutton_ip65button_Tragarm_ENlogo_ul-cert_black_XXL_E10A(Optionally)








  Produkt type     Diagonal / aspect ratio Protection     Touch     Mounting Operating system
Produktbild_F16T_perspektivisch-mit-Software
Touch-Panel F16T
Touch Panel 16 inch/ 16:9 IP65 Glas-Multitouch Mounting arm support


Android with WebWizard, Yocto (Linux) with Smartstart



Hygienic Design

H-ST series

H19ST-Produktbild
H19ST-Schwallwasser--Rueckseite500x500
H19ST-Detail-Fakeknopfneu1000x1000
H16ST-Detail-Spruehnebel500x500
H19ST-VA_Schwallwasser_500x500.

Whether concrete works, wood processing, steel production or other harsh production environments - this series was developed for machine-related applications under extreme conditions. The surfaces of the powder-coated steel housing are inclined. This ensures low soiling. Liquids can drain away at any point. Thanks to passive cooling, the housing is completely sealed. Hygienic design optional: The H19ST-PC is available in stainless steel for the food, beverage and pharmaceutical industries. With no joints, edges or pores, the panels fulfil the strict requirements of DIN EN 1672-2

button_16Zollbutton_19zollbutton_22Zollbutton_touchbutton_ip65button_Tragarm_EN



  Produkt type     Diagonal / aspect ratio Protection     Touch     Mounting Operating system
H19ST-Produktbild
Touch-Panel H15ST
Industrial Computer Touch Panel 15 inch/4:3

IP65

IP69k

Glas-Multitouch Mounting arm support

Windows
Linux

H16ST-Produktbild
Touch-Panel H16ST
Industrial Computer Touch Panel 16 inch/16:9

IP65

IP69k

Glas-Multitouch Mounting arm support

Windows
Linux

H19ST-Produktbild
Touch-Panel H19ST
Industrial Computer Touch Panel 19 inch/4:3

IP65

IP69k

Glas-Multitouch Mounting arm support

Windows
Linux

H16ST-Produktbild
Touch-Panel H22ST
Industrial Computer Touch Panel 22 inch/16:9

IP65

IP69k

Glas-Multitouch Mounting arm support

Windows
Linux



Operation and visualisation

K-Serie

K22-drei-Farben-klein

The operation and visualisation of machines and systems are the main areas of application for industrial touch panels. But which system is the right one if you are looking for flexibility and your own design?

  • Touch 12 inch to 22 inch
  • Suitable for mounting arm and wall mounting
  • Scalable to ARM7 - Core i5/i7
  • HMI to performance PC
  • Very flexible for customised housing variants thanks to tool-free production
  • Compact design with low weight
