Web-Header_E-Serie-768x768_mobile

E series

for particularly cost-sensitive applications

  • 4.3inches, 7inches and 10inches touch, lightweight plastic housing
  • front IP54
  • UL certified



Web-Header_F-Serie-768x768_mobile

F series

Robust built-in devices for panel mounting

  • Flat and seamless real glass front
  • Quick and convenient eccentric installation
  • tci system design for extra-long availability

Panel-PC and Touch-Panels for panel mounting

Thanks to many years of experience and extensive know-how, tci offers intelligent solutions with a unique reliability, which are highly appreciated by customers from a wide range of industries. We not only have our finger on the pulse of time, but also regularly set standards in automation and dynamic industrial computer technology.

  • System families from 4 inch touch
  • compact design and easy installation
  • IP protection

Differences at a glance



Front Plastic Aluminium or stainless steel Aluminium or
stainless steel
Aluminium or
stainless steel
Aluminium, black anodized
IP protection IP52/IP54 IP65 IP65 IP54/IP65  IP65
Display size 4"/7"/10" 10"/16"/22" 15"/19" 7"/12"/15" 19"
Touch technology PCT PCT RT RT PCT
Keyboard/Mouse integriated in front - - available - -
Operating system Android with WebWizard, Android with WebWizard,
XS-Technology,
Yocto (Linux) with software suite,
Windows
Linux
Windows
XS-Technology

Linux
Windows

Industrial monitor
-
F16A-iTFT
F22A-iTFT
A15-iTFT
A19-iTFT
-
G19A-iTFT

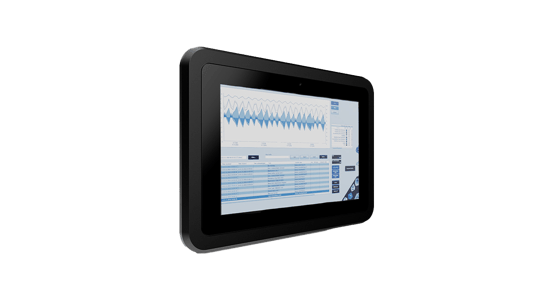

E series 4 inch - 10 inch

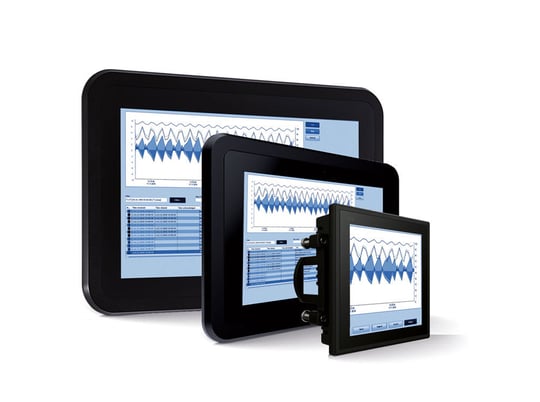

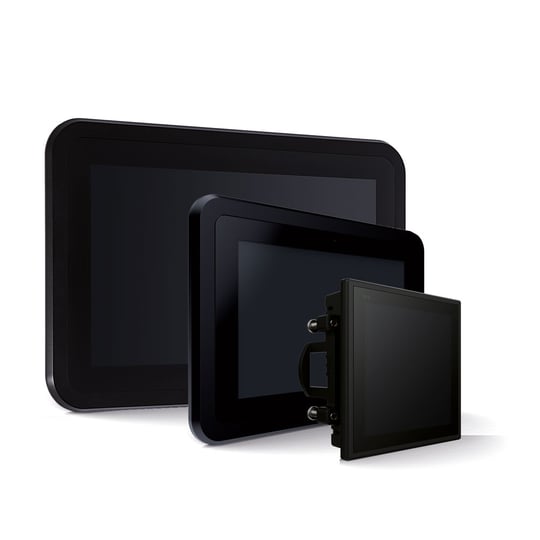

E-Serie-Produktgruppe
Produktbild_solo96_E04Ar2_perspek_hinten_02
E10A_Phoenixstecker_3-Pol-24V_1000px2

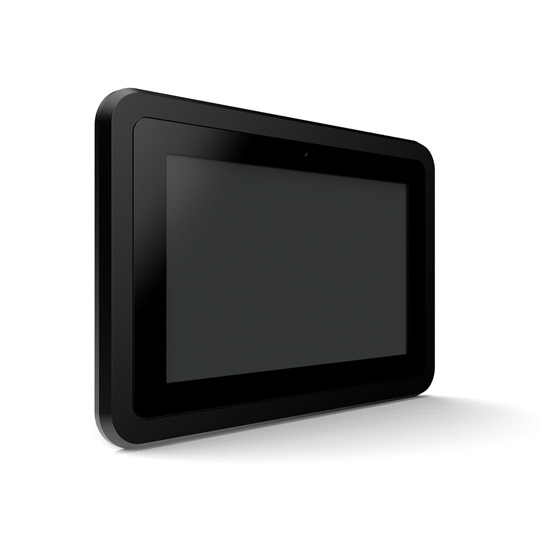

Produktbild_E07A_links

The E-Series with 4, 7 and 10 inch touch is used as a web HMI.
Alternatively, the 10-inch touch panel is also available as PLC Operating Terminal. The PLC Operating Terminals is equipped with the MicroBrowser and designed for the CoDeSys web visualization and the visualization of logic controllers (PLCs) with integrated web server. The MicroBrowser, optimally integrated into the CPU architecture, ensures a lightning-fast startup and high performance during operation.

The E-Series is available as web panel (4-, 7- and 10-inch) and PLC operating panel with Android (10-inch).

button_4Zollbutton_7Zollbutton_10zollbutton_ip54button_touchbutton_fanlessbutton_codesys30button_vnc



  Product type     Diagonal / aspect ratio Protection Touch     Mounting Operating system
Produktbild_E04Ar2_1000x1000
Webpanel E04A
Web Panel,
PLC operating terminal
4 inch/1:1 IP52 Glas-Multitouch Panel mounting/
96 x 96 mm


Android with WebWizard

Produktbild_E07A_links_freiWebpanel E07A Web Panel,
PLC operating terminal
7 inch/16:9 IP54 Glas-Multitouch Panel mounting Android with WebWizard
E10A-Produktbild_r
Webpanel E10A

Web Panel,
PLC operating terminal

10 inch/16:9 IP54 Glas-Multitouch Panel mounting,
Mounting arm
Android with WebWizard





F series 10 inch - 22 inch

Produktbild_F22A_perspektivischLinks
Produktbild-F22A_PC-Rueckseite-45Grad
Produktbild_F16A.r2_Exzenter-CloseUp

The F-Series with 10 inch to 22 inch touch is used for panel mounting. The touch panels are particularly characterized by their robust design and ensure maximal production safety under tough requirements. The F-series also offers IP65 protection on the front. This series replaces the tci G-series due to its installation compatibility. The most common applications can be found in the HMI area with user interfaces and visualizations. The F series offers solutions with Linux, Android, PC technology and can be as a web panel integrated.

button_10zollbutton_16Zollbutton_22Zollbutton_touchbutton_fanlessbutton_ip65

icons_UL_20x20
(F16A-XI)









  Product type     Diagonal / aspect ratio Protection Touch     Mounting Operating system
Produktbild_Gruppe-F10A_2023_perspektivisch-links
Touch-Panel F10A
Web Panel,
PLC operating terminal
10 inch/ 16:9 IP65 Glas-Multitouch Panel mounting


Android with WebWizard, Yocto (Linux) with Software Suite,
Windows

Produktbild_F16A_mit-Bildschirminhalt_FreiTouch-Panel F16A

Touch Panel,
Industrial monitor

16"/ 16:9 IP65 Glas-Multitouch Panel mounting

Android with WebWizard, Yocto (Linux) with Software Suite, Windows

Produktbild_F22A_perspektivischLinks
Touch-Panel F22A

Touch-Panel,
Industrial monitor

22"/ 16:9 IP65 Glas-Multitouch Schalttafel


Android with WebWizard, Yocto (Linux) with Software Suite,
Windows





A series 15 inch - 19 inch

Produktbild_A-Serie_500x500
A15-Rinnsal_1000x1000px
A15-Detail-Touchpad_1000x1000
Detailbild_A24-Schraube-und-Dichtung
A15-Detail-Touchpad_1000x1000

The touch panels of A-series are available with a 15 inch or 19 inch touchpanel. It's also possible to get an integrated keyboard and touchpad in protection class IP65.

button_15zollbutton_19zollbutton_ip65button_touchbutton_intel_corebutton_intel_atom



  Product type     Diagonal / aspect ratio Protection Touch     Mounting Operating system
Produktbild_A15&A15-KB_ALU_2023_1000x1000px
Touch-Panel A15
Industrial Computer Touch Panel,
Industrial Monitor
15 inch/4:3 IP65 Foils/resistive touch Panel mounting/Rack

Windows,
Linux

Produktbild_A-Serie_500x500Touch-Panel A19 Industrial Computer Touch Panel,
Industrial Monitor
19 inch/4:3 IP65 Foils/resistive touch Panel mounting/Rack Windows,
Linux





C series 7 inch - 15 inch

Produktbild_C70&C120&C150_ALU_2023
Detailbild_C120-PC_perspektivisch-hinten
Produktbild_C70_ALU-hinten_2023_1000x1000

The Touch Panels of the C-Series can be used as PLC Operating Terminal. The variants are quipped with 7", 12" and 15" touch. The PLC Operating Terminals are equipped with the MicroBrowser and designed for the CoDeSys web visualization and the visualization of logic controllers (PLCs) with integrated web server. The MicroBrowser, optimally integrated into the ARM7 architecture, ensures a lightning-fast startup and high performance during operation.

button_7Zollbutton_12Zollbutton_15zollbutton_touchbutton_ip65button_fanlessbutton_codesys30button_vnc



  Product type     Diagonal / aspect ratio Protection Touch     Mounting Operating system
Produktbild_C70_ALU_2023_1000x1000
Web-Panel C70-XS
Web Panel,
PLC operating terminal
7 inch/4:3 IP54 Foils/resistive touch Panel mounting

XS-Technology

Produktbild_C120_ALU_2023_1000x1000_frei
Web-Panel C120-XS
Web Panel,
PLC operating terminal
12 inch/4:3 IP65 Foils/resistive touch Panel mounting

XS-Technology

Produktbild_C150_ALU_2023_1000x1000
Web-Panel C150-XS

Web Panel,
PLC operating terminal

15 inch / 16:9 IP65 Foils/resistive touch Panel mounting

XS-Technology



G series 19 inch

G07A
G07A_Detailbild_Seite
GxxA-Detail-Schraube

The slim and robust touchpanels with 19 inches convince due to their continuous glass surface. The widescreen display is very user friendly as it is equipped with durable LED backlights. It will be equipped with a classic 4:3 screen.

This robust System and wireless system configuration with tci baseboard and panel mount in common. The touchpanels are suitable for many HMI applications both in industrial environment and in the sectors laboratory, medicine, food, logistics and package.

button_19zollbutton_ip65button_touchfanlessbutton_intel_core



  Product type     Diagonal / aspect ratio Protection Touch     Mounting Operating system
Produkbild-G19A-Freigestellt
Touch-Panel G19A
Touch Panel,
Industrial Monitor
19 inch/4:3 IP65 Glas/Multitouch
Foils/resistive touch
Panel mounting

Windows,
Linux
