Exchange Kits

Replacement panels for integration into existing flush-mounted boxes from the manufacturers Gira, Jung, Merten, Inputech, Ceconet, IIS-LCN, Divus and Dialogic

Depending on the system to be replaced, replacement panels consist of a mounting plate, power supply, e.g. power supply unit, and a cover frame.

Your Advantages at a Glance:

  • easy to integrate into existing flush-mounted boxes
  • no need to remove the old flush-mounted boxes
  • quick and secure installation thanks to adapter



Manufacturer

Product Name

Type UP-Housing or
Item-No Flush-Mounted Box

Basic Device as Exchange Kit

Front Design

Datasheet
Ceconet 15 Zoll   Edition 3 Glass and aluminum fronts and many colors start download
Dialogic Major 19   Edition 5 Acrylic glass or aluminum, color silver, white or black coming soon
Divus Superio 15 MS15 Edition 3 Glass and aluminum fronts and many colors start download
Gira  Client9 208200 Edition 4 Acrylic glass or aluminum, color silver, white or black start download
Gira  Client19 207600 Edition 5 Acrylic glass or aluminum, color silver, white or black start download
IOS-LCN 15 Zoll GMT-015 Edition 3 Glass and aluminum fronts and many colors coming soon
Inputech Fuente 15Zoll UPF1015F1 Edition 3 Glass and aluminum fronts and many colors start download
Inputech Fuente 19Zoll UPF10F1-19UPC3 Edition 5 Acrylic glass or aluminum , color silver, white or black start download
Inputech Combo 15Zoll Zg.09-7860 Edition 3 Glass and aluminum fronts and many colors start download
Inputech Combo 17Zoll UP17C5-A/PC17UPC2 Edition 5 Acrylic glass or aluminum , color silver, white or black coming soon
Jung SmartControl 10-1 SC10EBG Edition 3 Acrylic glass or aluminum, color silver, white or black start download
Jung SmartControl 15 SC15EBG Edition 3 Glass and aluminum fronts and many colors   coming soon
 Merten IP-Touchpanel 683091 Edition 4 Acrylic glass or aluminum, color silver, white or black start download



Example

Gira Client 9

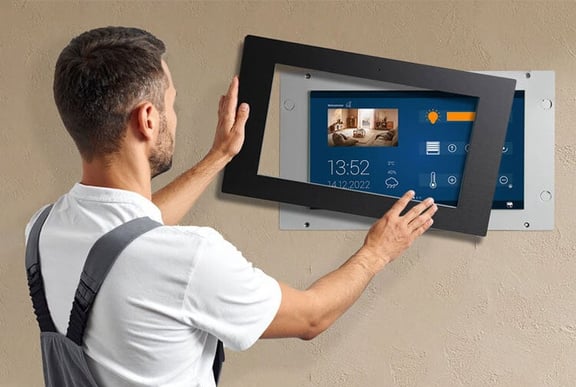

The Simple Assembly Instructions in Three Steps:

1. remove insert frame
2. insert adapter frame
3. insert panel

  • adapter with mounting material for installation in the Gira housing, optionally height-adjustable for masonry
  • additional adapter frame made of PU in white or black or made of anodised aluminum in black or white or lacquered
  • simple click mounting of the Editions panels

Example

Gira Client 19

  • special front panel with multi-touch glass, identical mounting points as the Gira panel

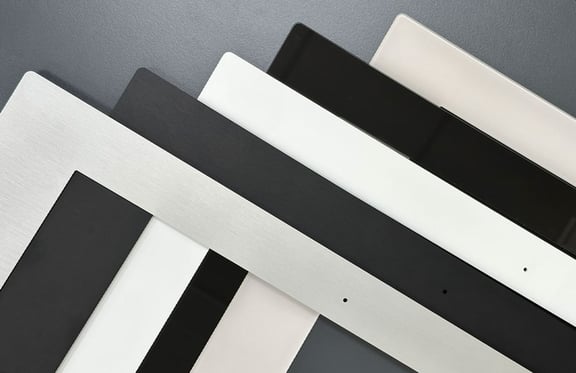

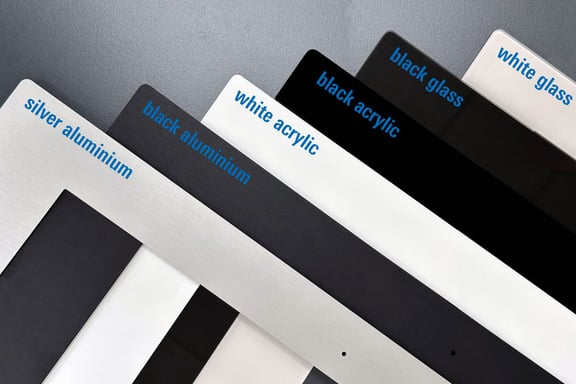

  • additional covers made of acrylic/anodised in a brushed look or also made of glass with a smooth surface
  • USB connection and reset function on the front panel
  • the industrial power supply unit is prepared for mounting in the Gira installation housing
  • equipped with a quad-core industrial board as standard, optionally also available with the latest Core i technology or as a touch monitor
